Home
>>
Oldsmobile
>>
1996
>>
Aurora V8-4.0L VIN C
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Control Assembly
>>
Diagrams
>>
HVAC Passenger Controller
HVAC Passenger Controller

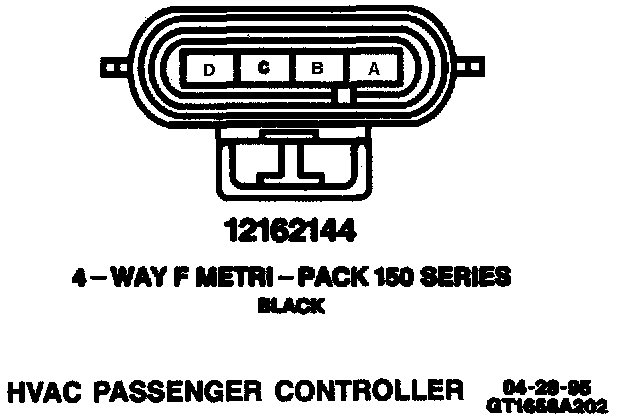

HVAC Passenger Controller:

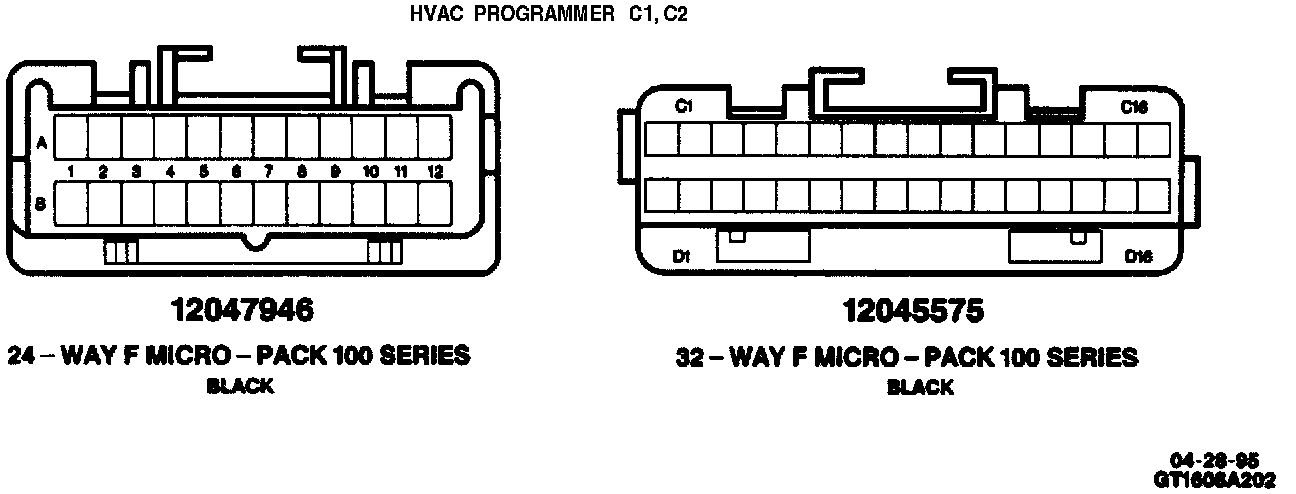

HVAC Programmer C1, C2:

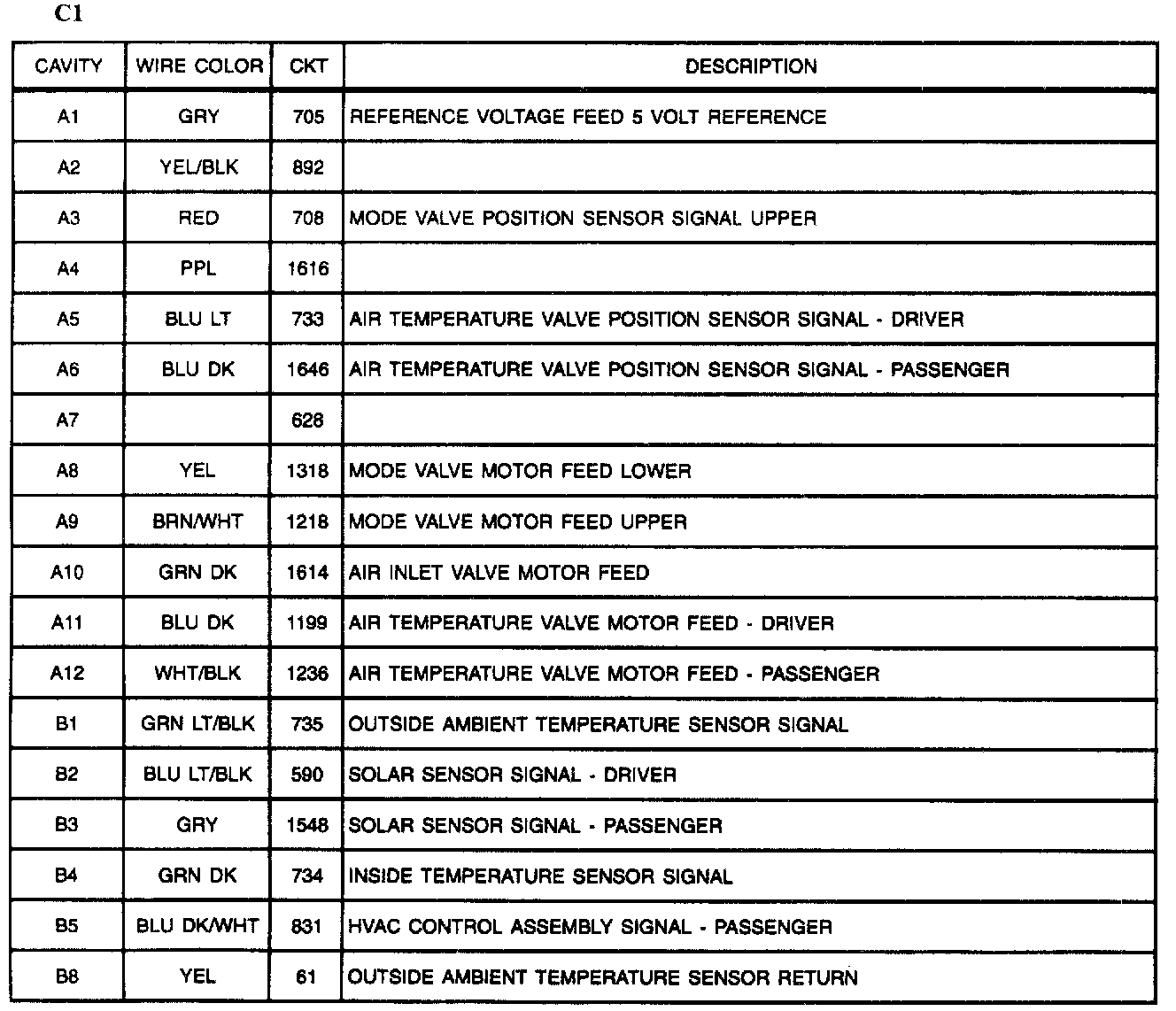

HVAC Programmer C1, C2 (Part 1 Of 2):

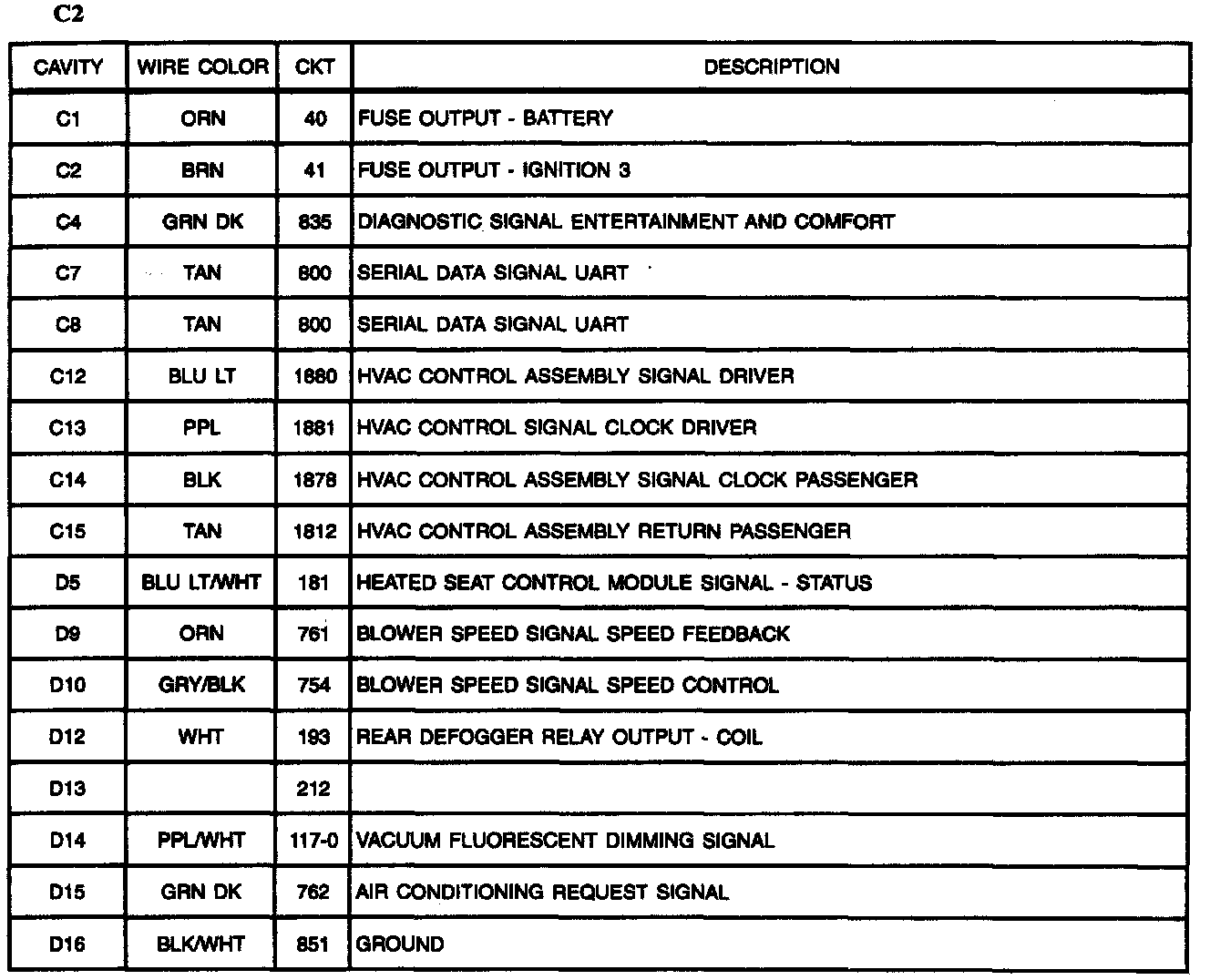

HVAC Programmer C1, C2 (Part 2 Of 2):
