Home >> Oldsmobile >> 1996 >> Aurora V8-4.0L VIN C >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Engine >> Specifications >> Fastener Tightening Specifications - Sequence

Fastener Tightening Specifications - Sequence

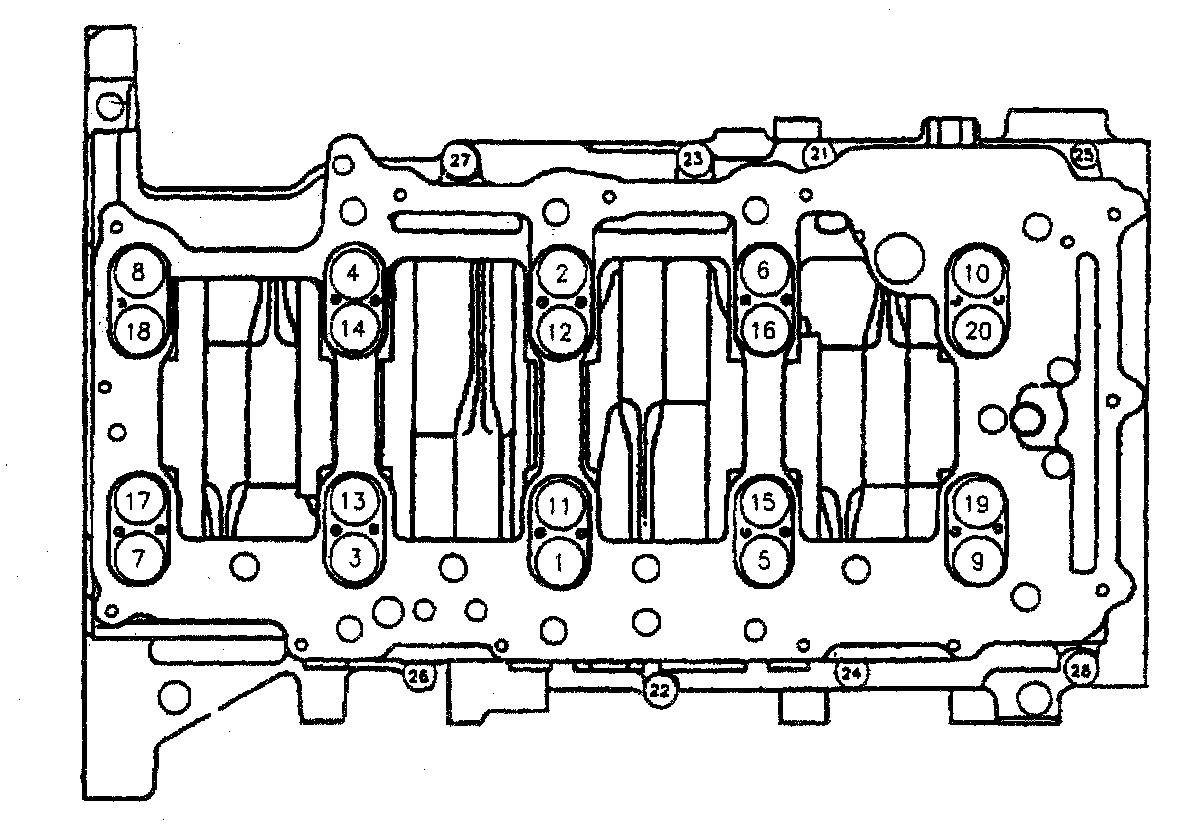

4.0L - Main Bearing Tightening Sequence:
