Aurora V8-4.0L VIN C
>>
Repair and Diagnosis
>>
Diagrams
>>
Grounds
>>
Grounds By Number
>>
G110
G110

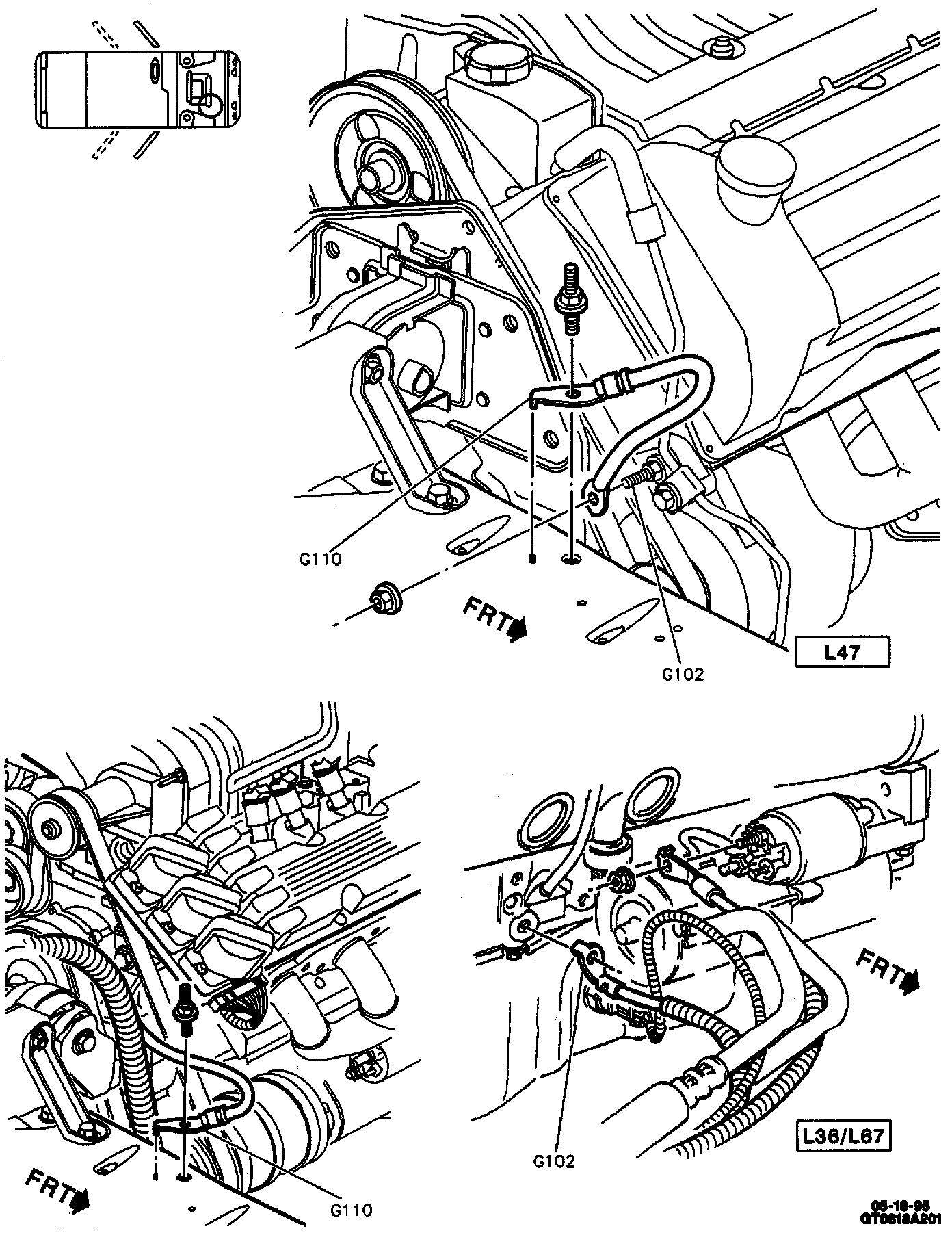

RH Side Of Engine Compartment, Front Of Engine:
