Turn Lamps Fuse, Perimeter LP Fuse and ABS Fuse
Turn Lamps Fuse, Perimeter LP Fuse and ABS Fuse

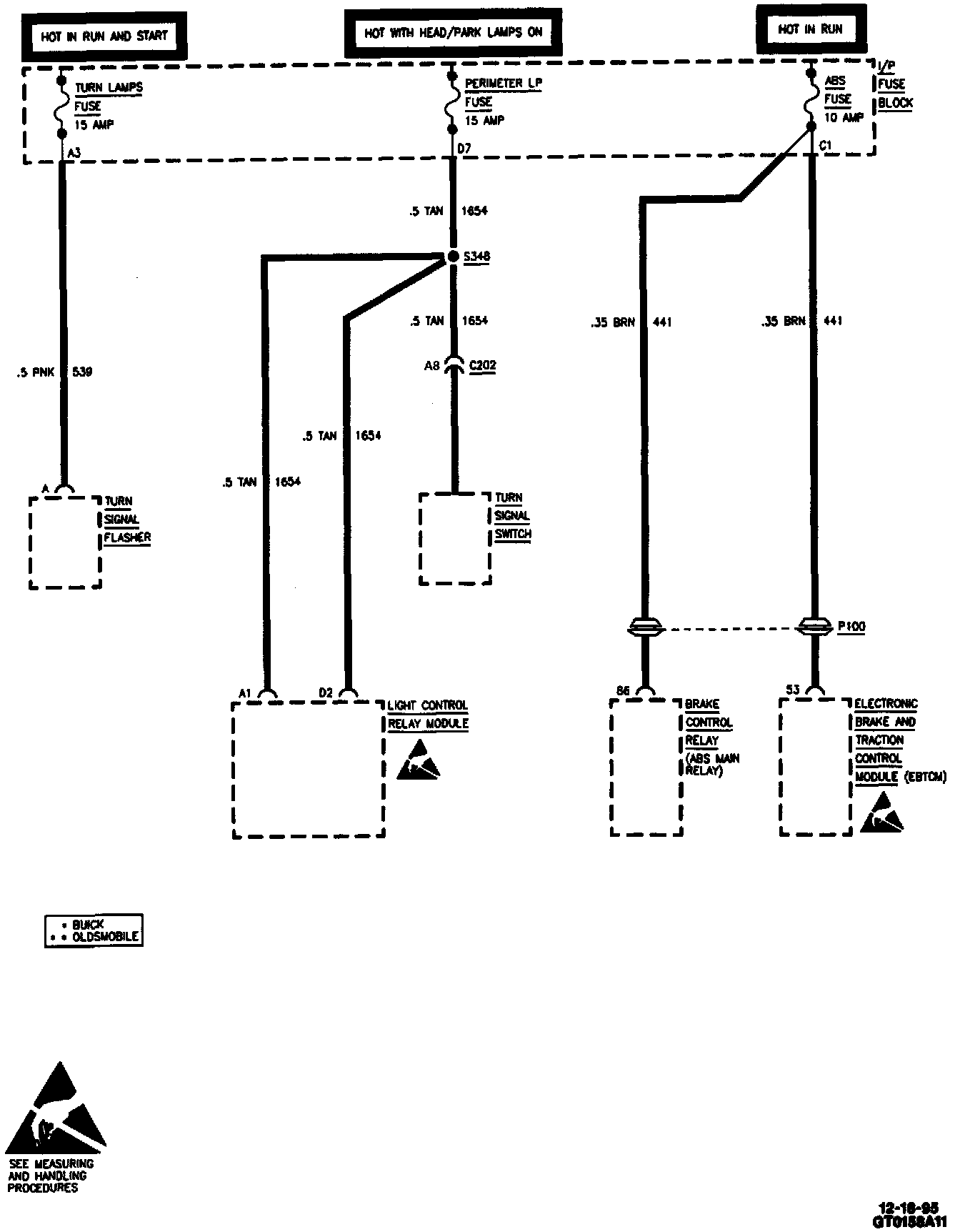

Turn Lamps Fuse (15 Amp), Perimeter LP Fuse (15 Amp) And ABS Fuse (10 Amp):
