Trunk Door Release/Fuel Door Release Fuse

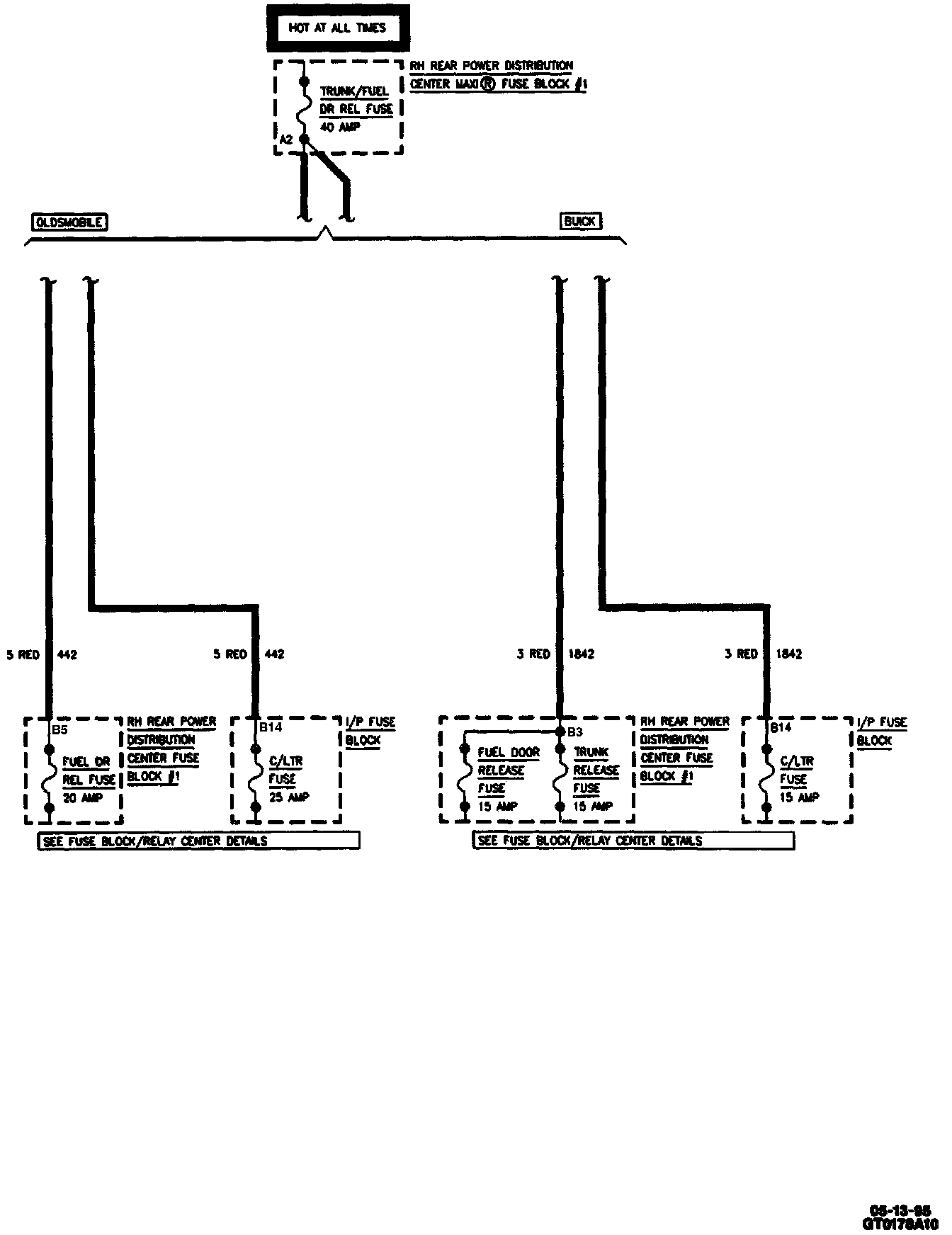

Power Distribution - Trunk Door Release/Fuel Door Release Fuse (40 Amp):
