FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Oldsmobile
>>
1996
>>
Aurora V8-4.0L VIN C
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Power Distribution Diagrams
>>
Fuses
>>
Heated Seats Fuse, Rear Defog Fuse
Heated Seats Fuse, Rear Defog Fuse

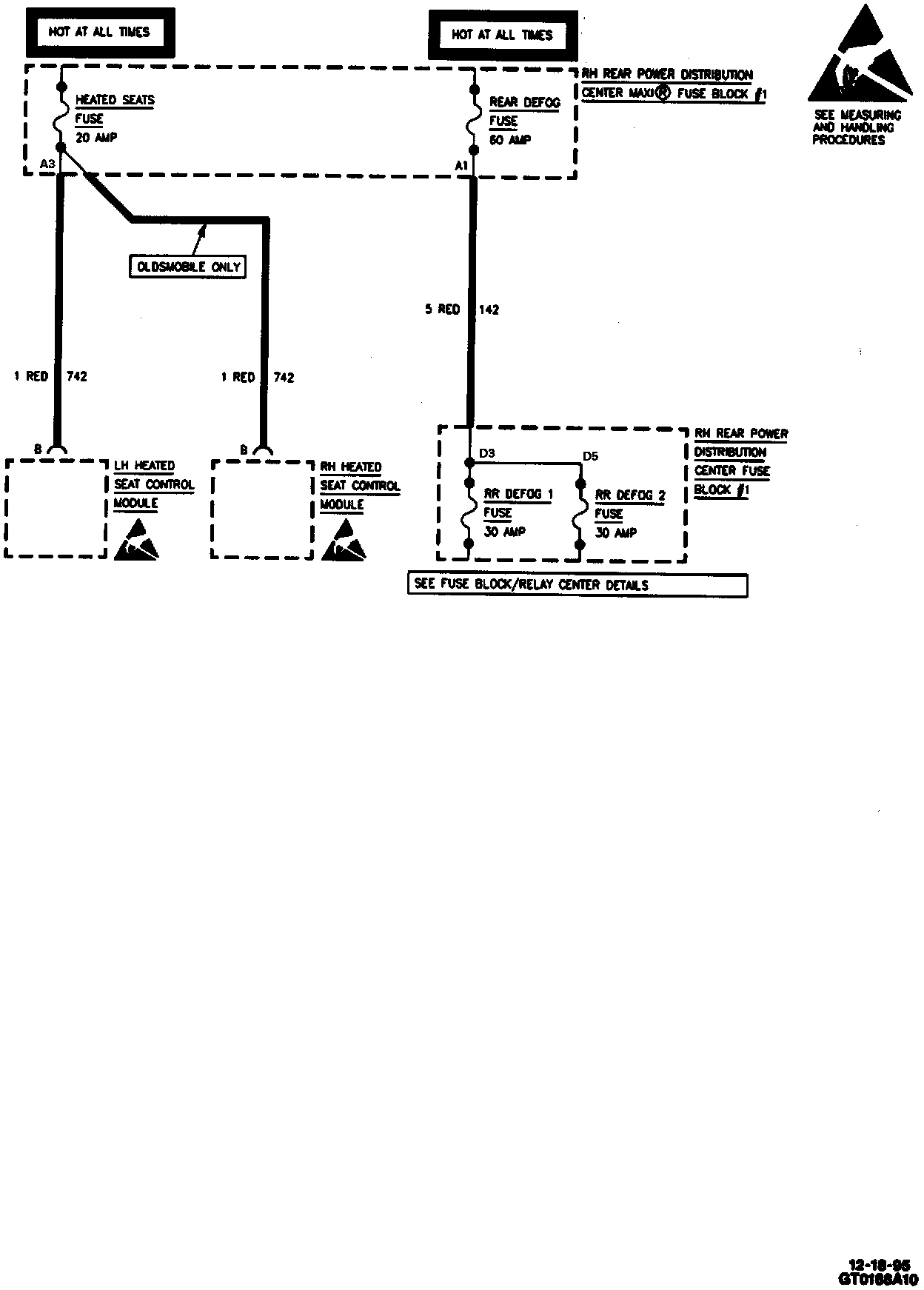

Power Distribution - Heated Seats Fuse (20 Amp), Rear Defog Fuse (60 Amp):
