HTD O/S Mir Fuse, RR Defog 2 Fuse and RR Defog 1 Fuse
HTD O/S Mir Fuse, RR Defog 2 Fuse and RR Defog 1 Fuse

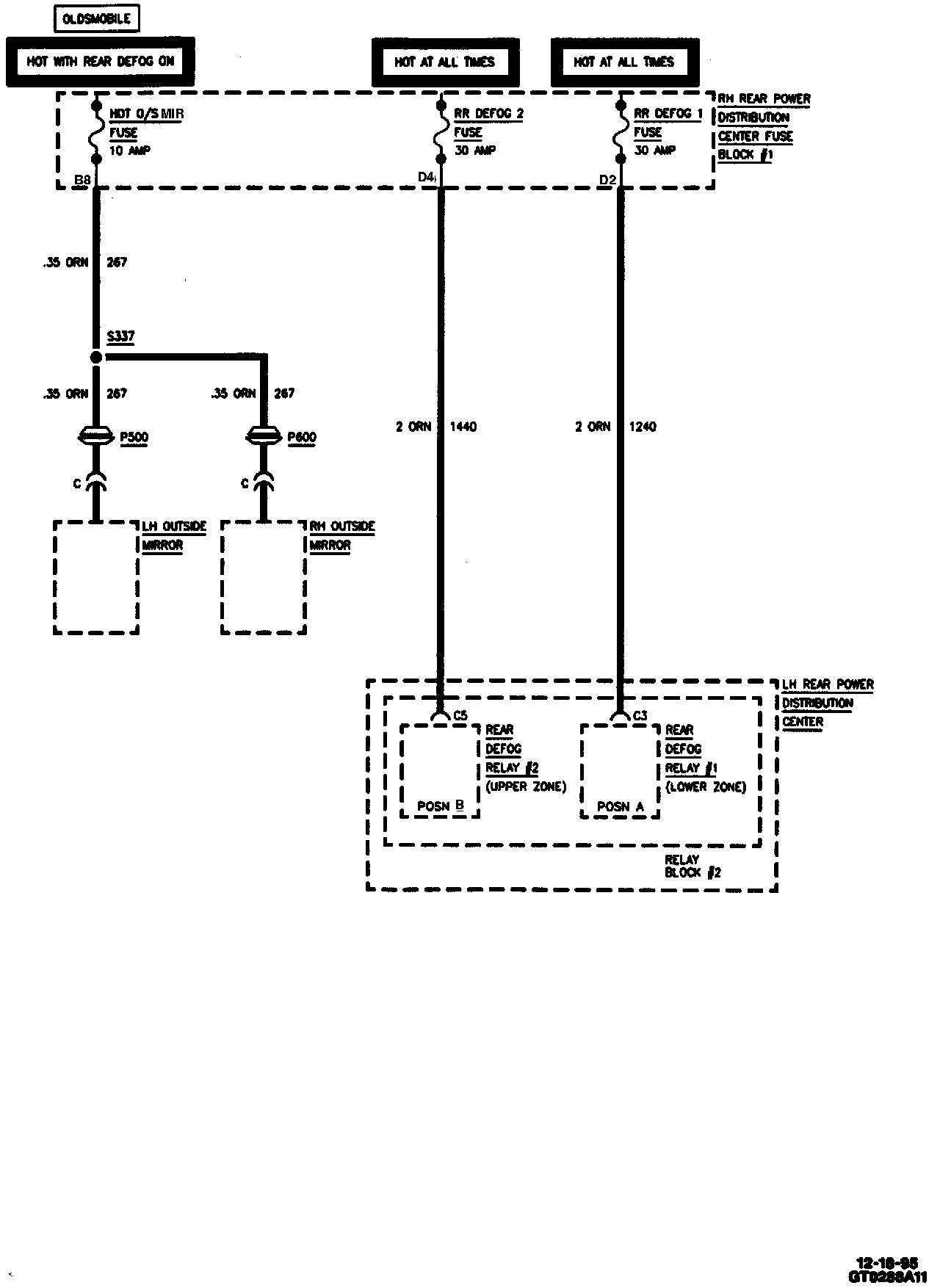

HTD O/S MIR Fuse (10 Amp), RR DEFOG 2 Fuse (30 Amp) And RR DEFOG 1 Fuse (30 Amp):
