Aurora V8-4.0L VIN C
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Radio, Stereo, and Compact Disc
>>
System Diagram
>>
Radio/Audio System Wiring
>>
Uplevel With Remote Compact Disc Changer
Uplevel With Remote Compact Disc Changer

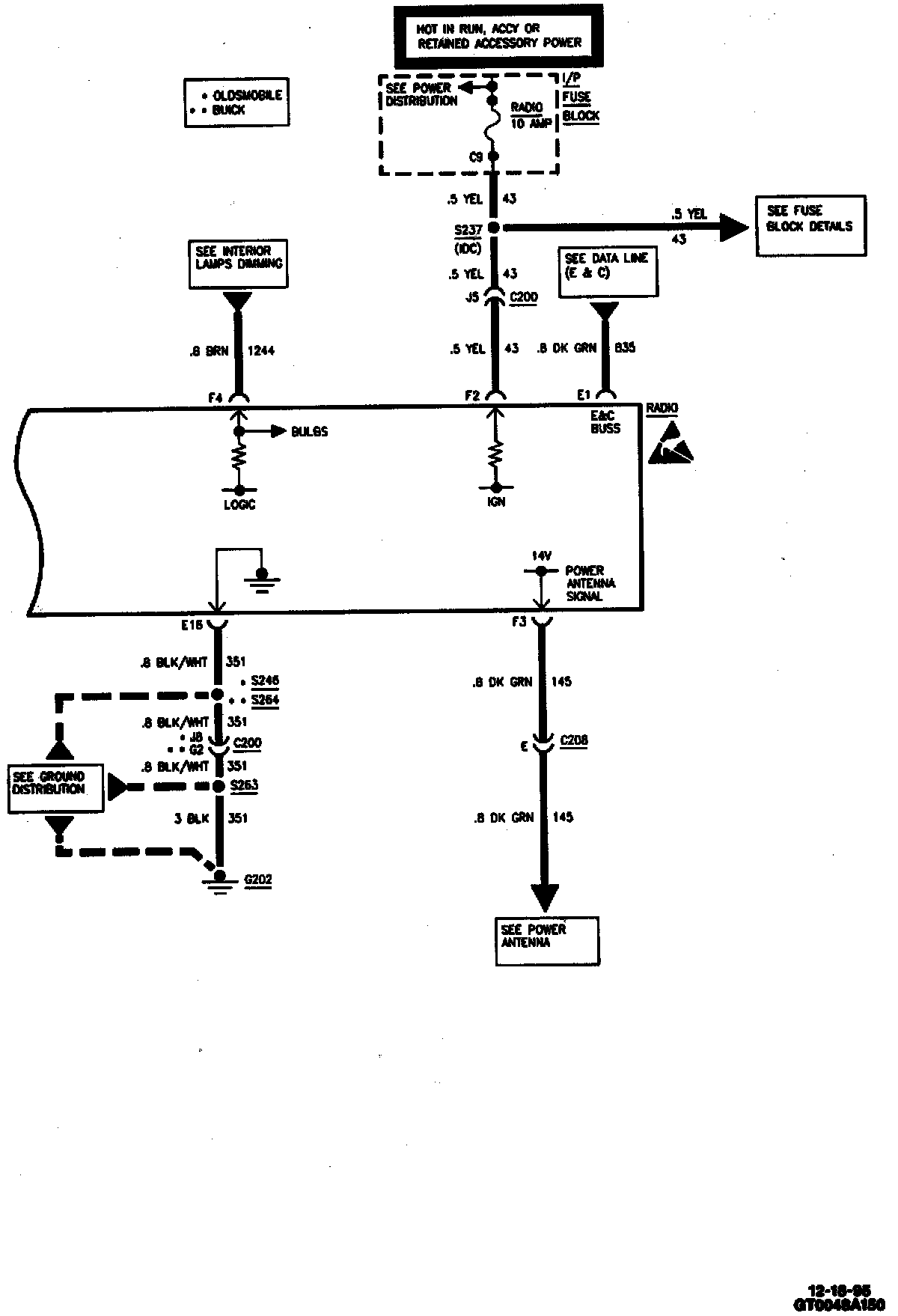

Radio: Uplevel With Remote Compact Disc Changer (Part 1 Of 2):

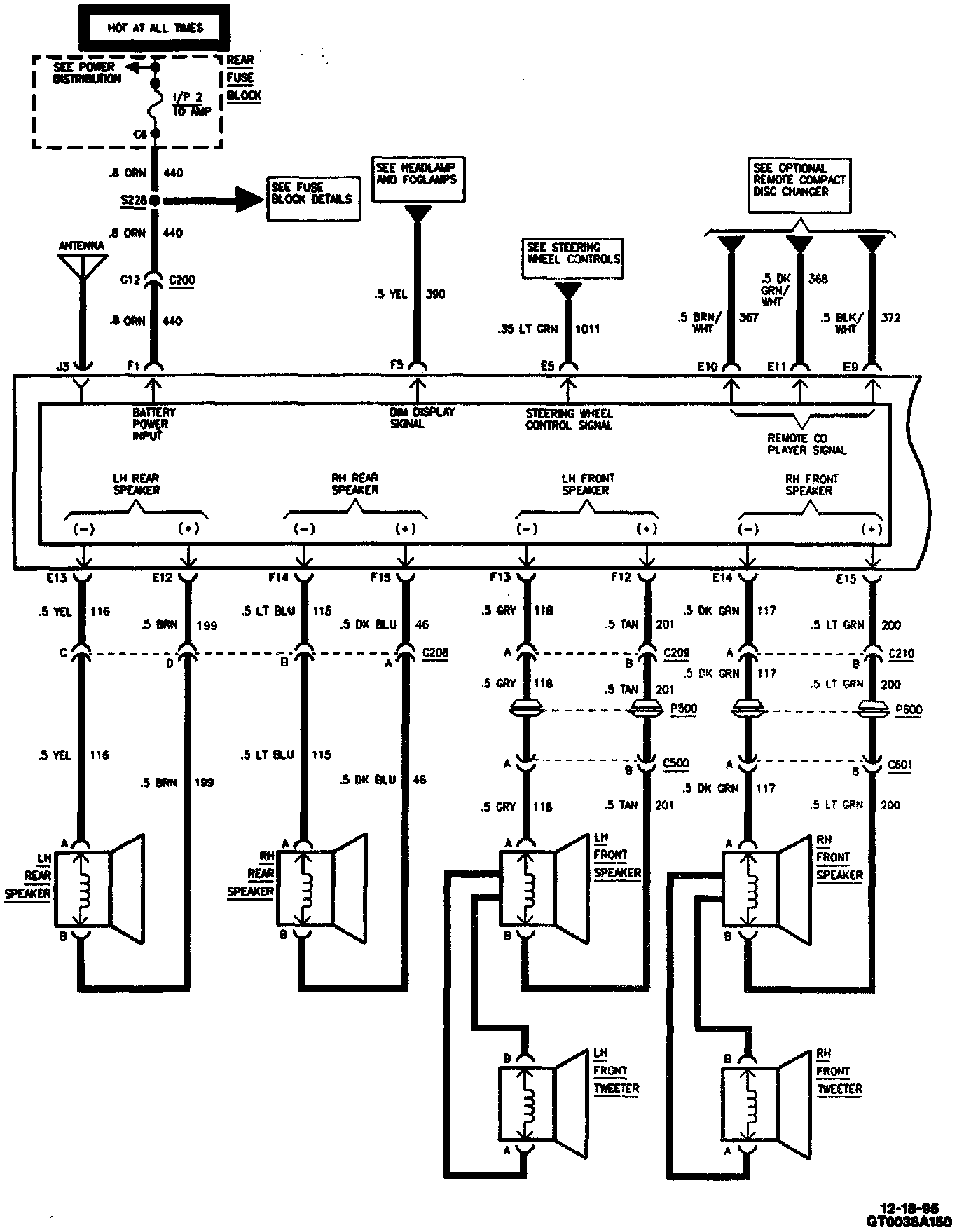

Radio: Uplevel With Remote Compact Disc Changer (Part 2 Of 2):
