Home >> Oldsmobile >> 1996 >> Aurora V8-4.0L VIN C >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Radio, Stereo, and Compact Disc >> System Diagram >> Radio/Audio System Wiring >> Base Radio

Base Radio

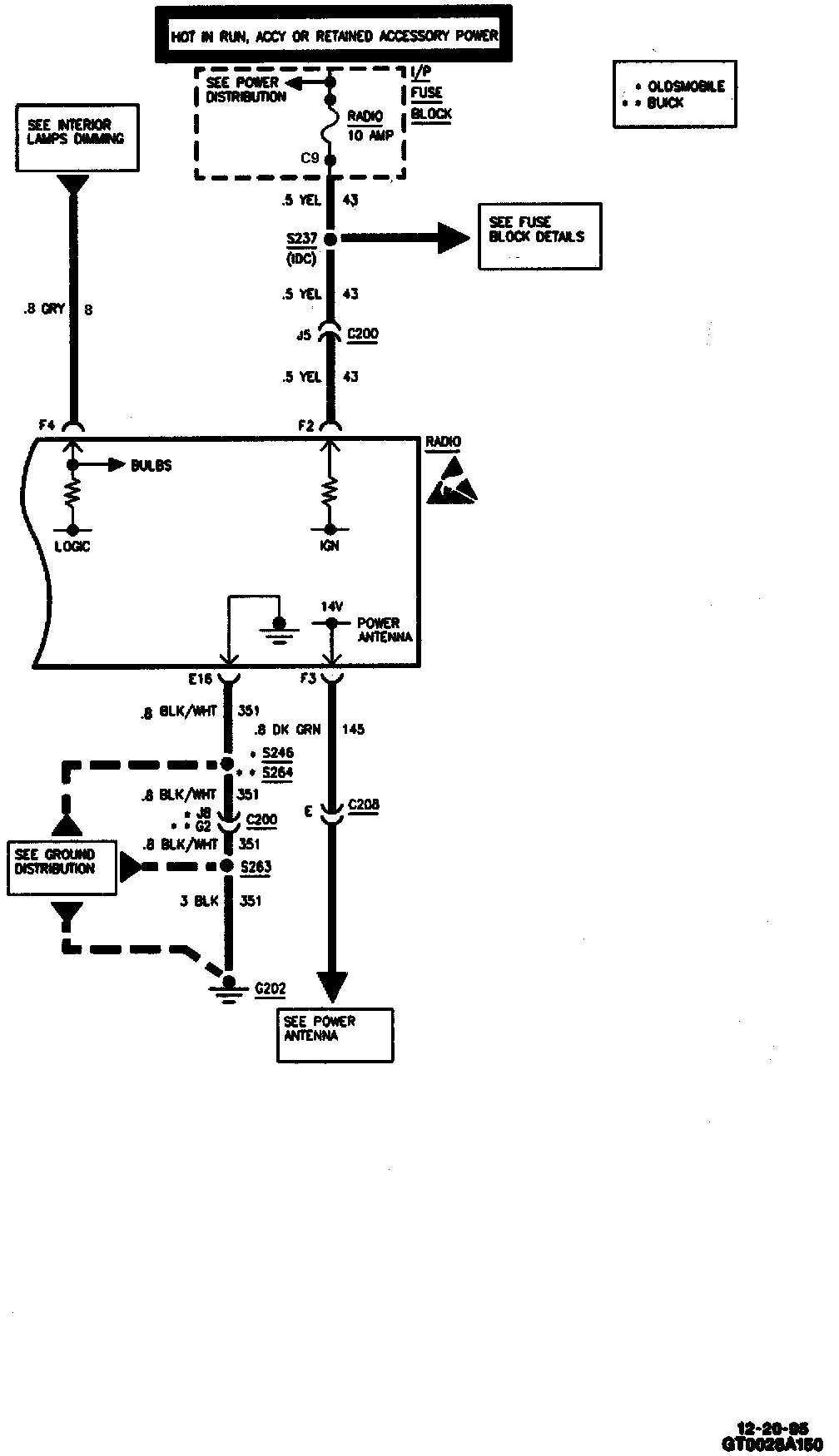

Radio: Base (Part 1 Of 2):

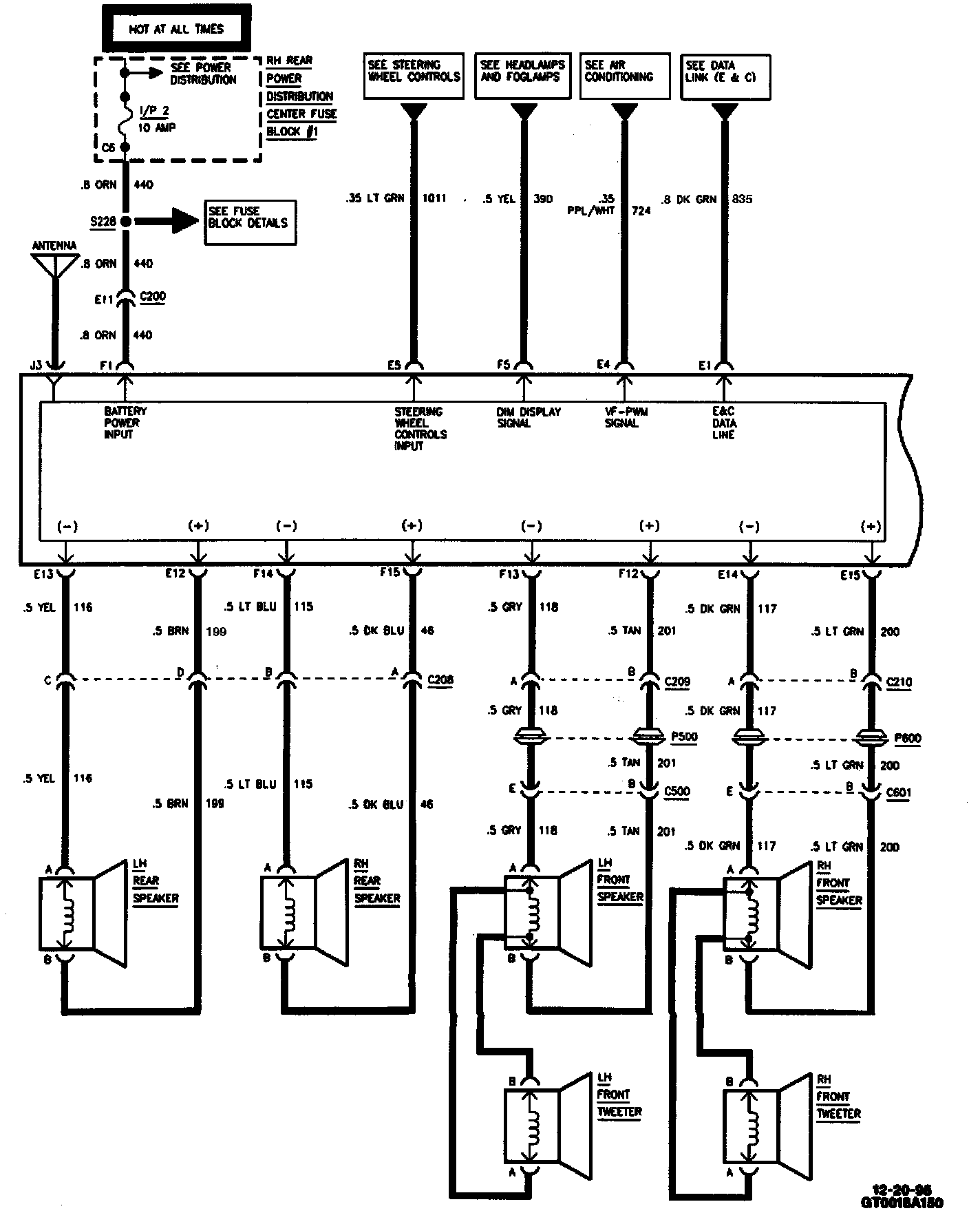

Radio: Base (Part 2 Of 2):
