Home >> Oldsmobile >> 1996 >> Aurora V8-4.0L VIN C >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Powertrain Management >> System Diagram >> Stepper Motor Cruise Control (SMCC) and VSS

Stepper Motor Cruise Control (SMCC) and VSS

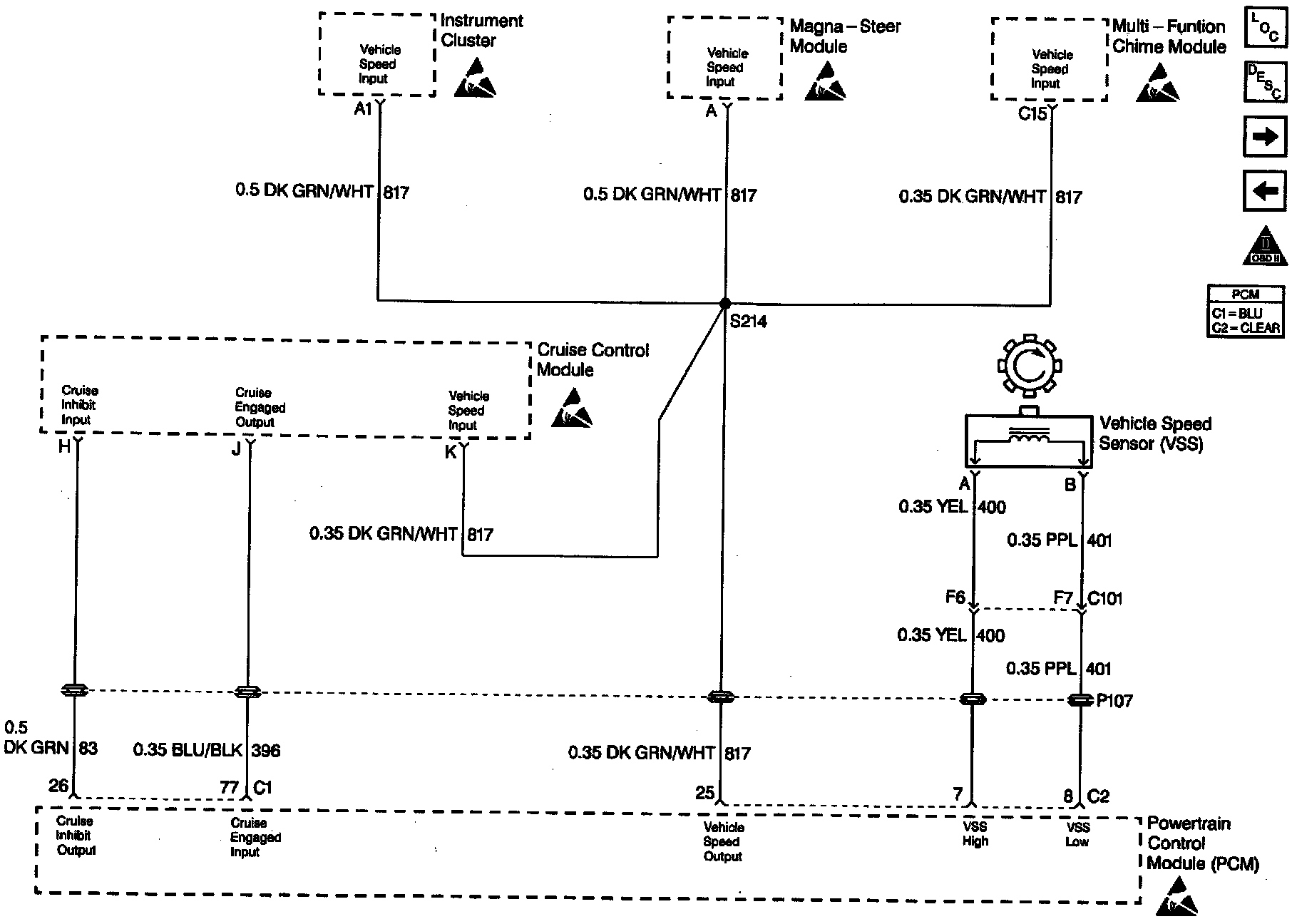

Stepper Motor Cruise Control (SMCC) And Vehicle Speed Sensor (VSS):
