Home >> Oldsmobile >> 1996 >> Aurora V8-4.0L VIN C >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Powertrain Management >> Computers and Control Systems >> Information Bus

Information Bus

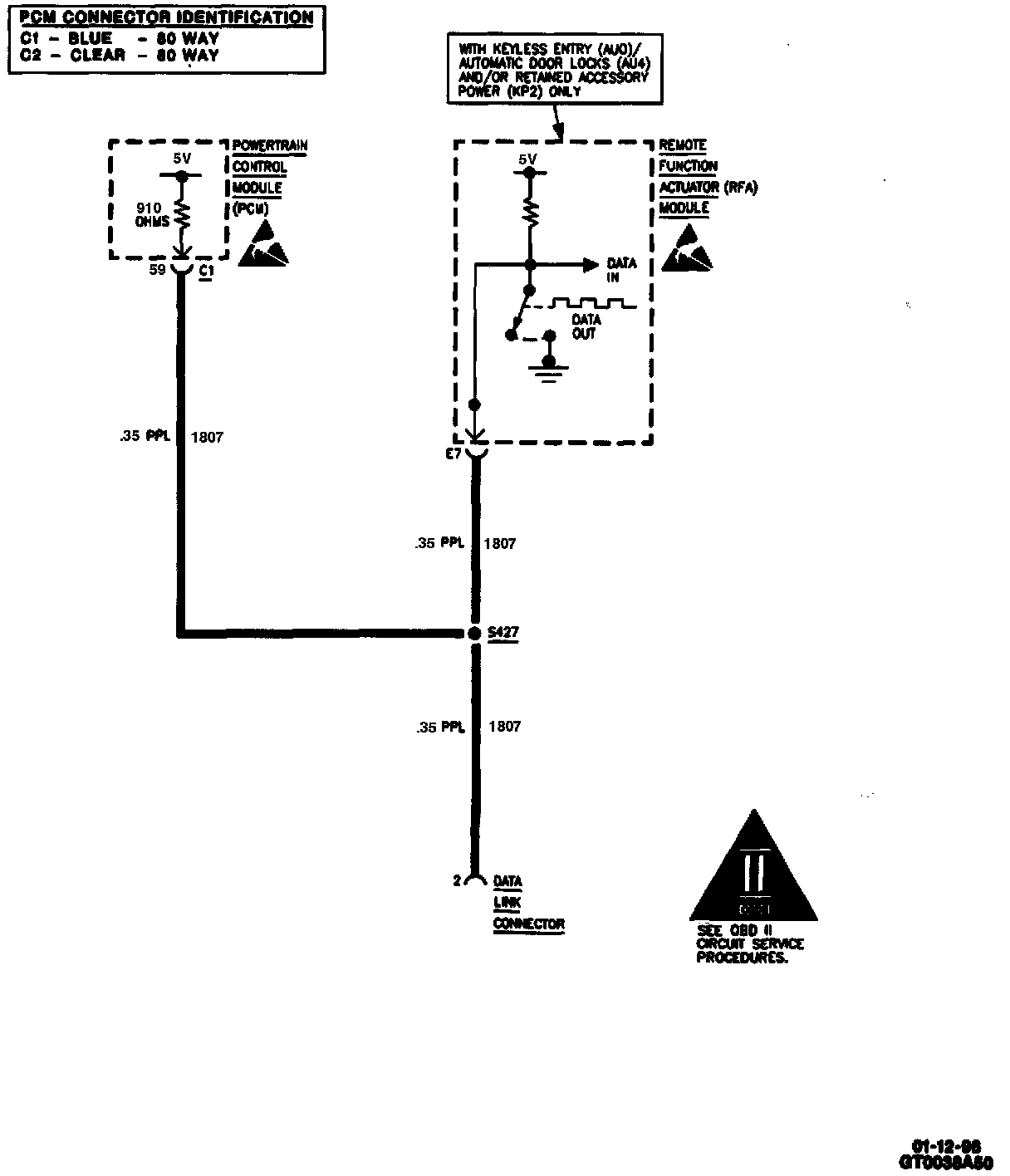

Data Link Connector - UART Serial Data Line:

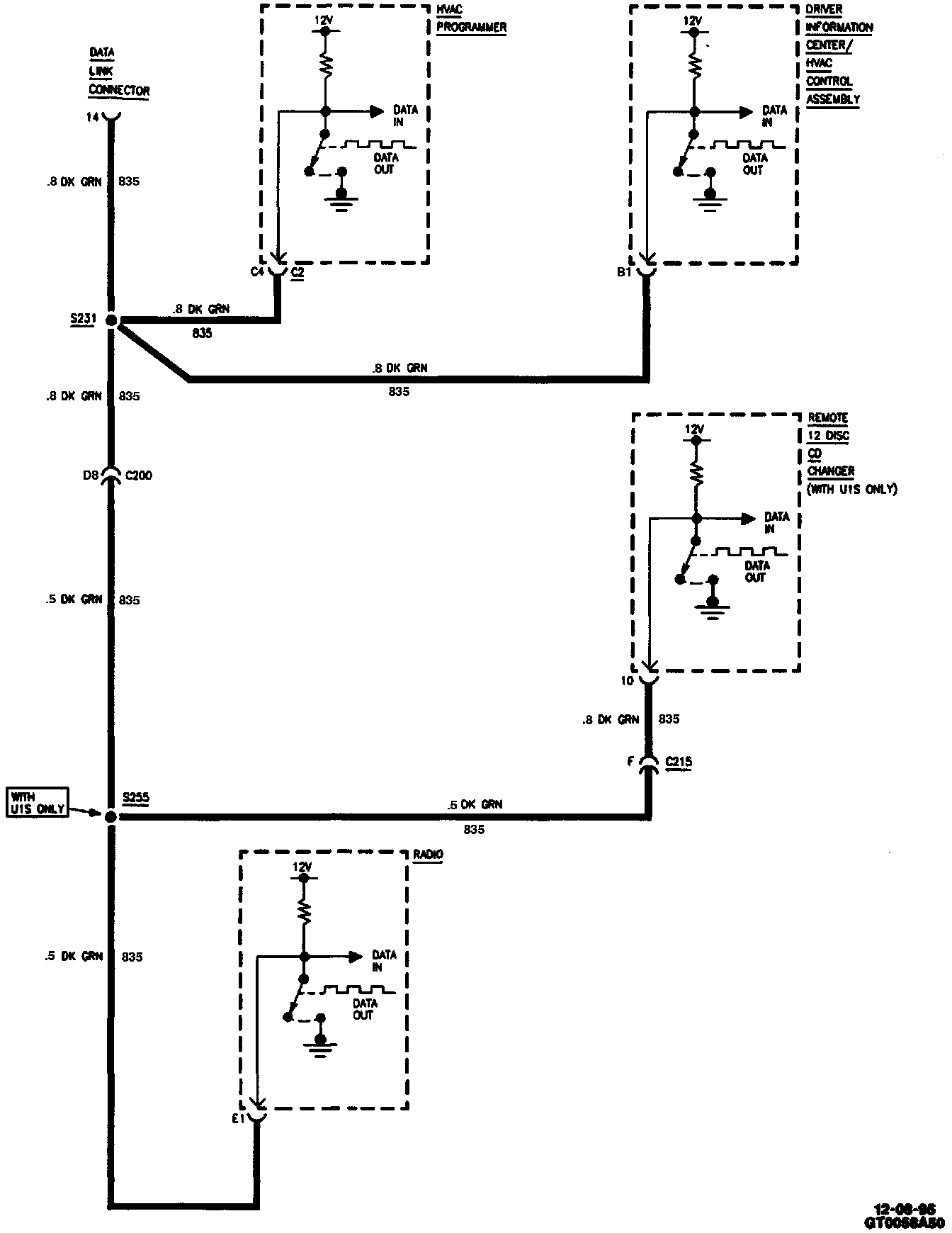

Data Link Connector - Class II Serial Data Line:

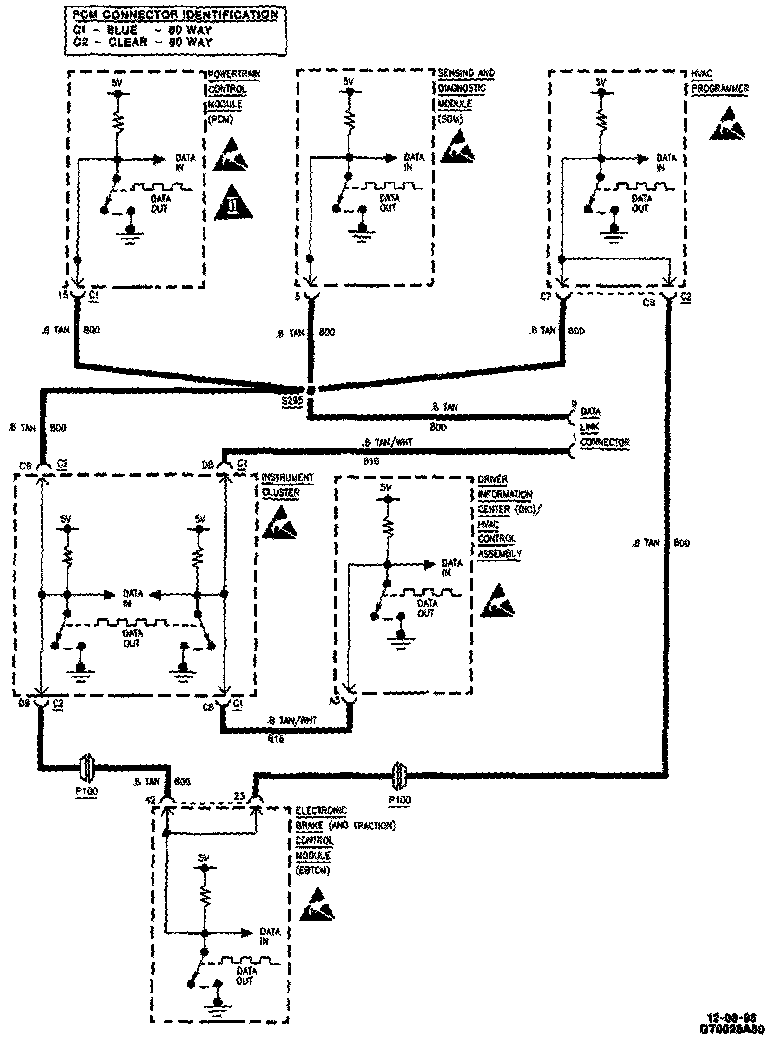

Data Link Connector - E & C Serial Data Line:
