Home >> Oldsmobile >> 1996 >> Aurora V8-4.0L VIN C >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Powertrain Management >> Computers and Control Systems >> Data Link Connector

Data Link Connector

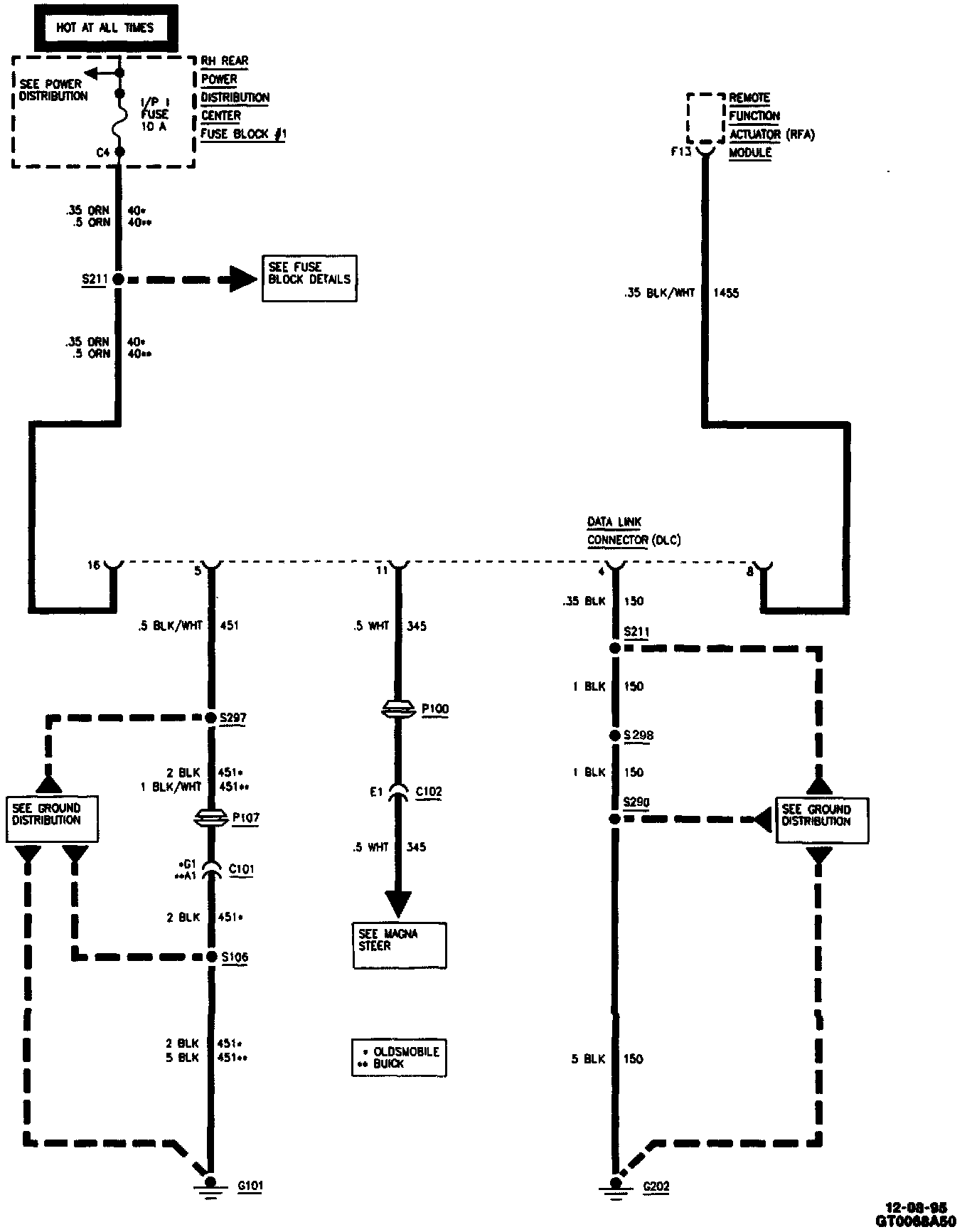

Data Link Connector - Power, Ground And Other DLC Circuits:
