Home >> Oldsmobile >> 1996 >> Aurora V8-4.0L VIN C >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Lighting and Horns >> System Diagram >> Interior Lamps >> Courtesy/Warning Lamps

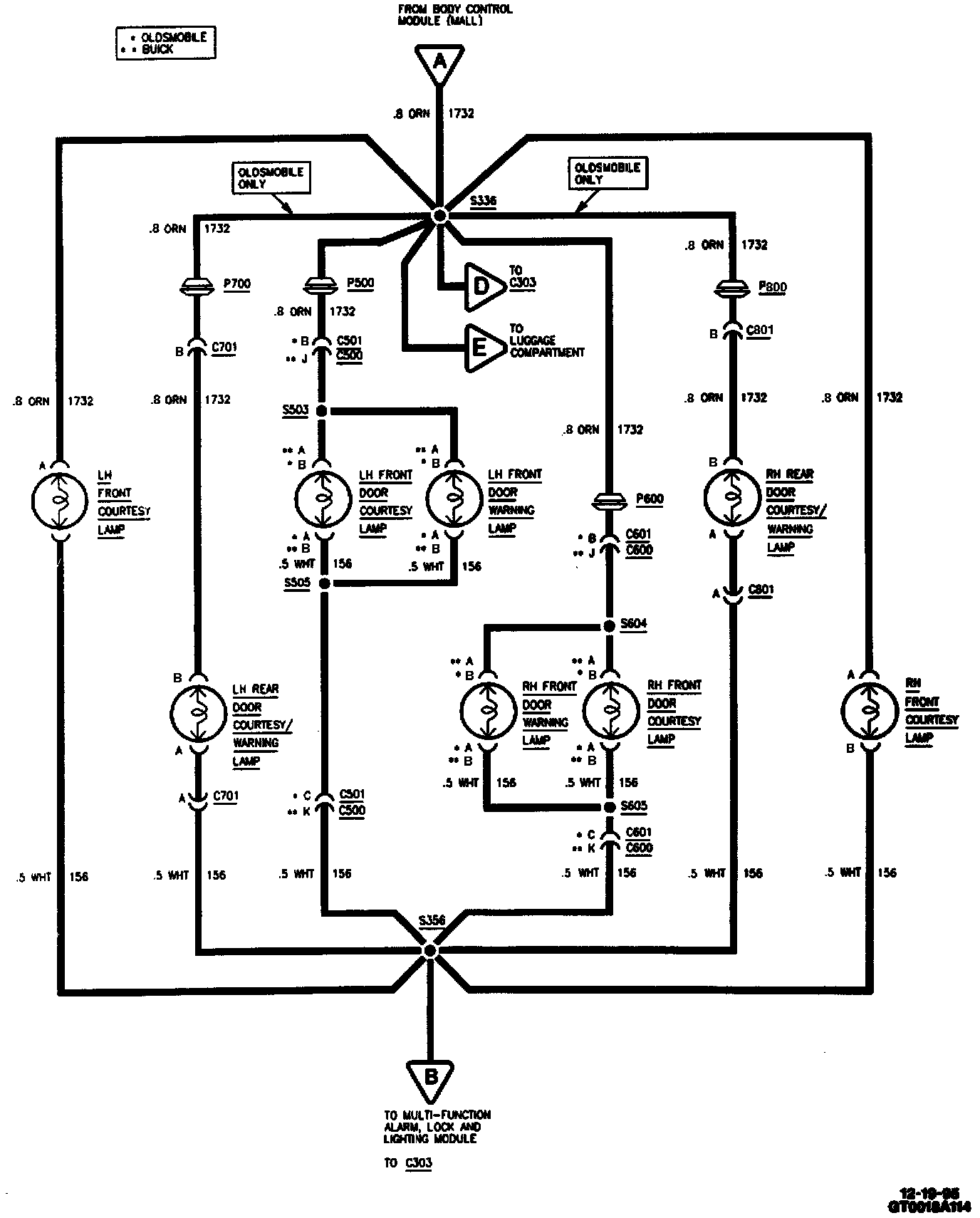

Courtesy/Warning Lamps

Interior Lamps - Courtesy/Warning Lamps:
