Home >> Oldsmobile >> 1996 >> Aurora V8-4.0L VIN C >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Lighting and Horns >> System Diagram >> Interior Lamps >> Console Compartment Lamp

Console Compartment Lamp

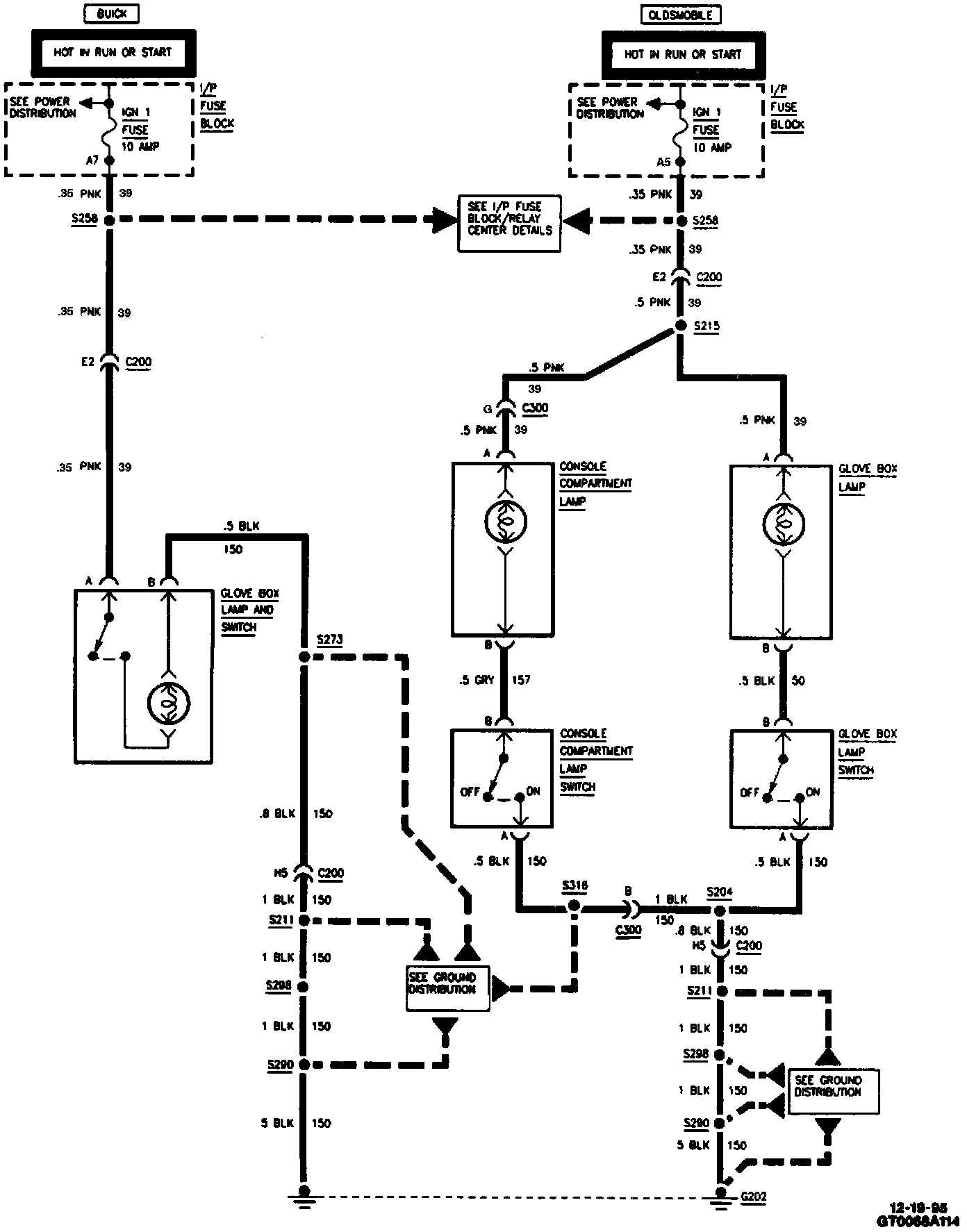

Interior Lamps - Glove Box Lamp/Console Compartment Lamp:
