Home
>>
Oldsmobile
>>
1996
>>
Aurora V8-4.0L VIN C
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Lighting and Horns
>>
System Diagram
>>
Interior Lamps
>>
Auxiliary Power Outlet/Cigar Lighters/PRNDL Lamp
Auxiliary Power Outlet/Cigar Lighters/PRNDL Lamp

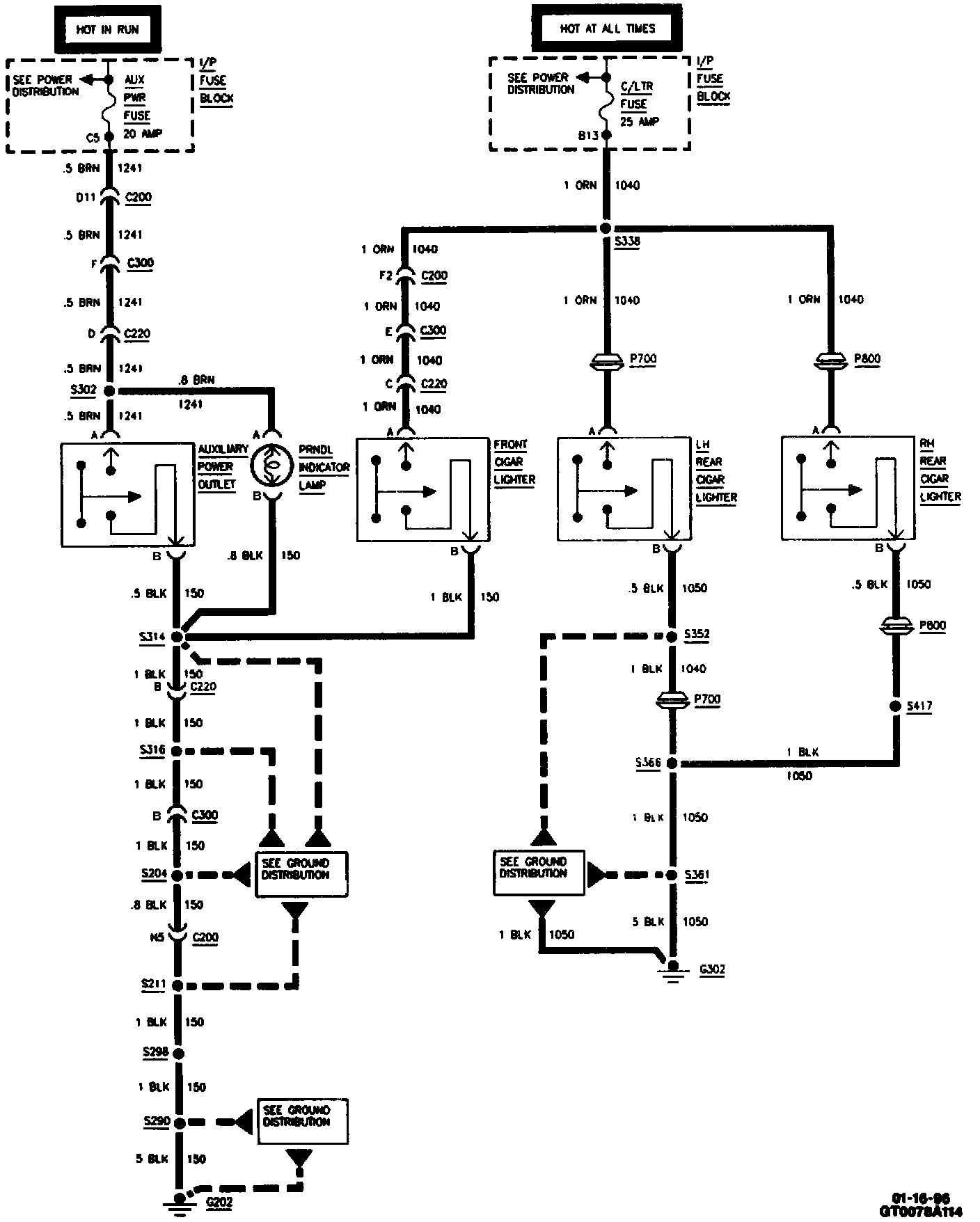

Interior Lamps - Auxiliary Power Outlet/Cigar Lighters/PRNDL Indicator Lamp:
