Interior Lamps Dimming

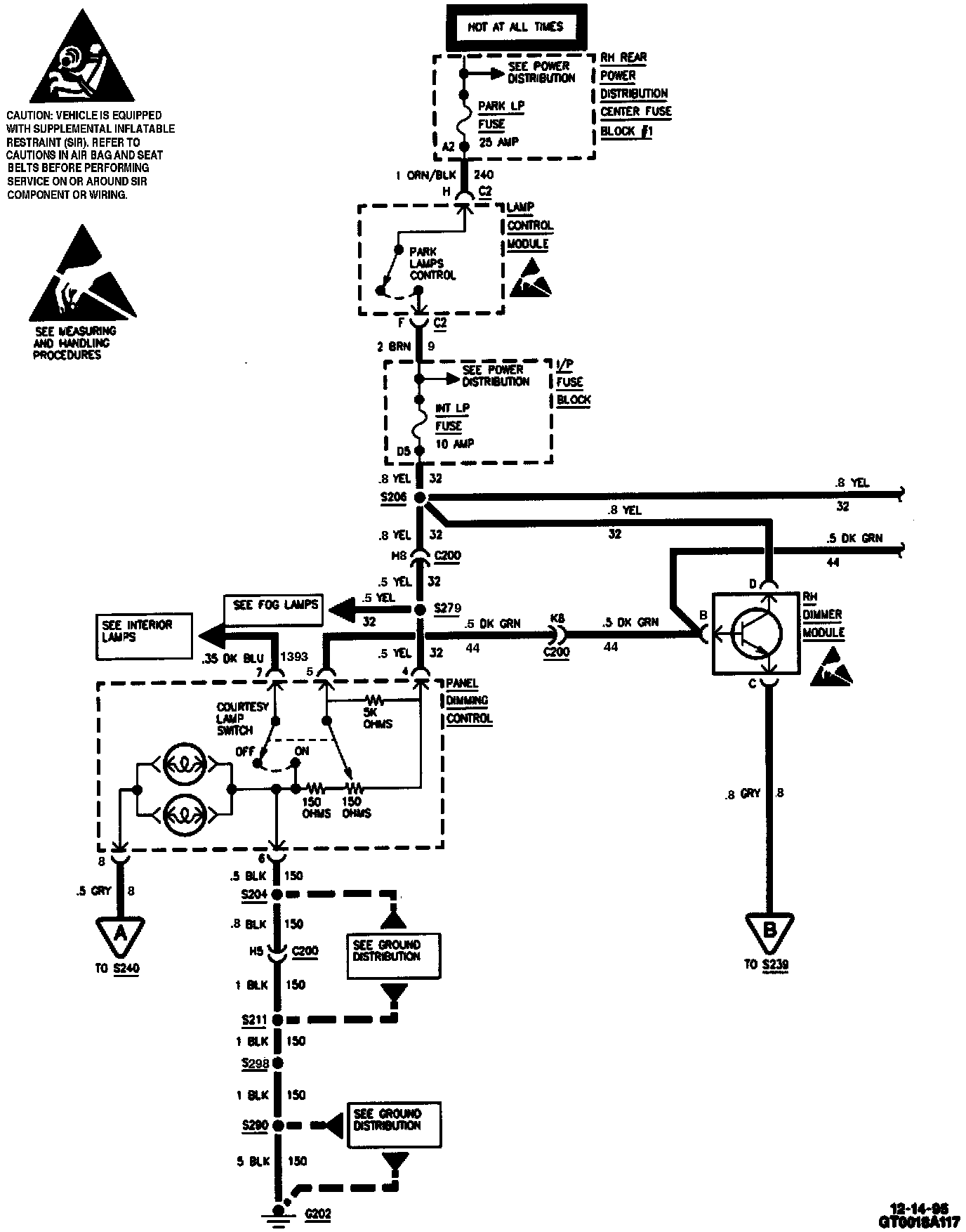

Interior Lamps Dimming (Part 1 Of 5):

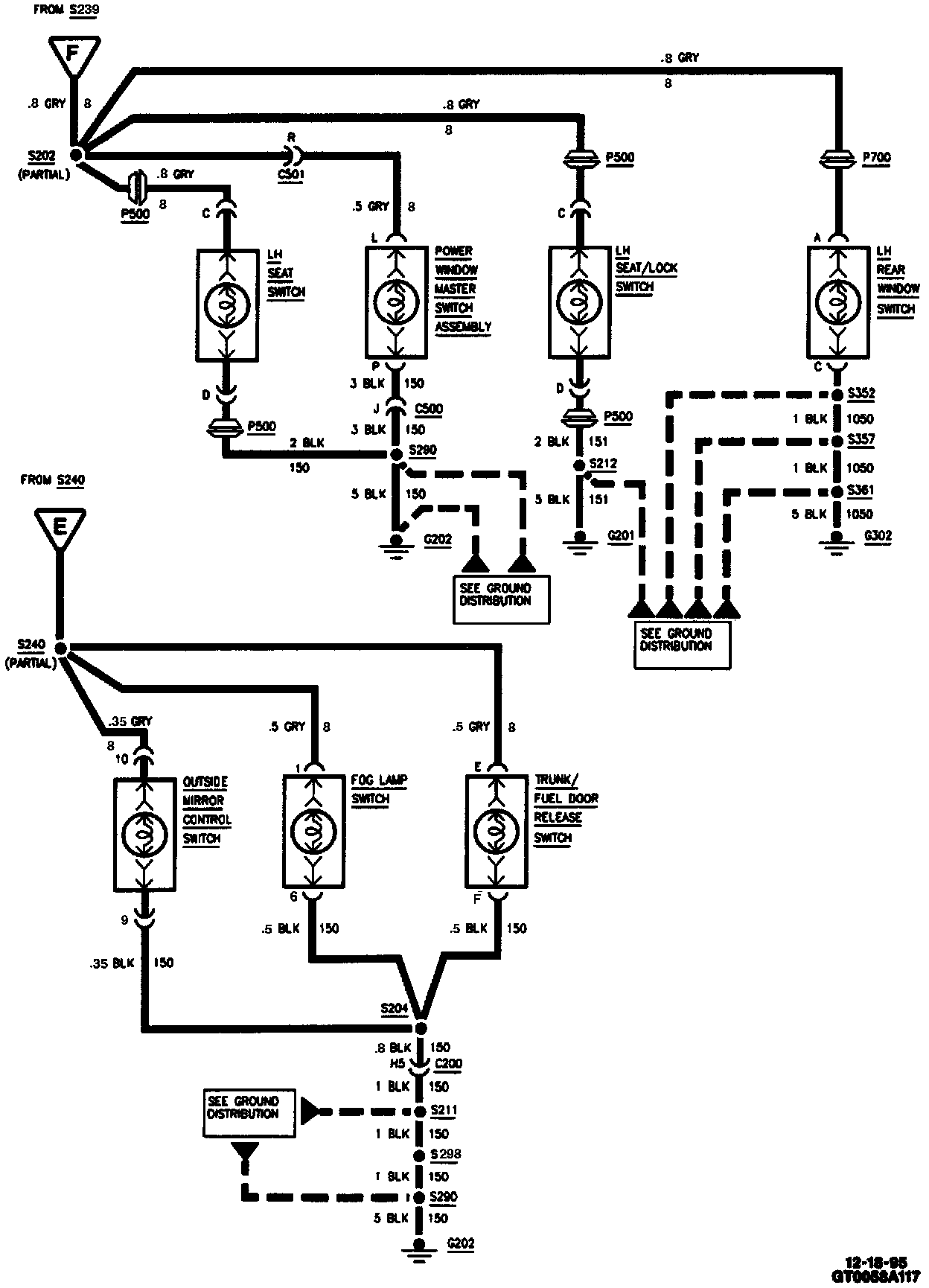

Interior Lamps Dimming (Part 2 Of 5):

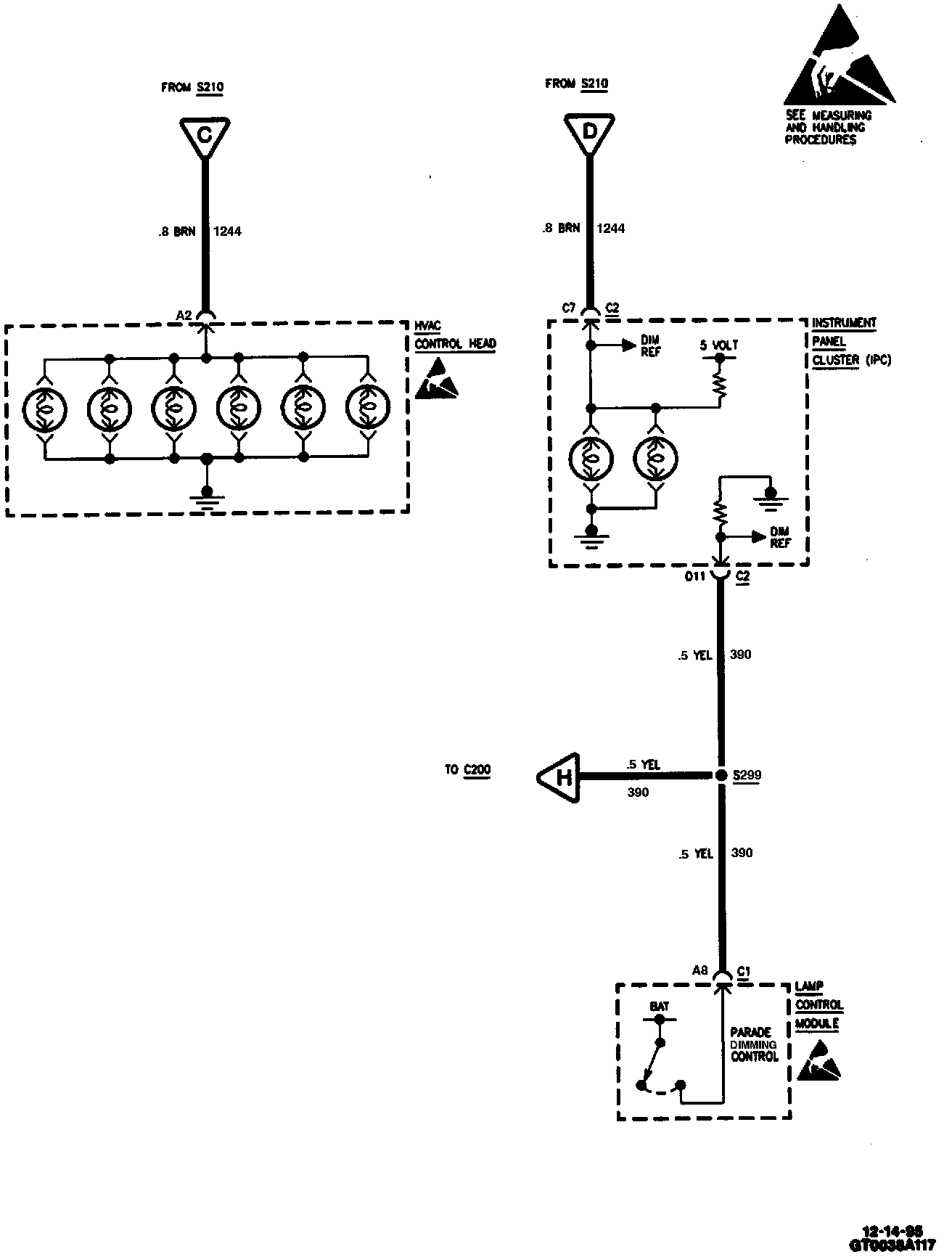

Interior Lamps Dimming (Part 3 Of 5):




Interior Lamps Dimming (Part 4 Of 5):




Interior Lamps Dimming (Part 5 Of 5):
