Aurora V8-4.0L VIN C
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Radio, Stereo, and Compact Disc
>>
Remote Control Module, Audio - Stereo
Remote Control Module, Audio - Stereo
Remote Function Actuator (RFA) Module:

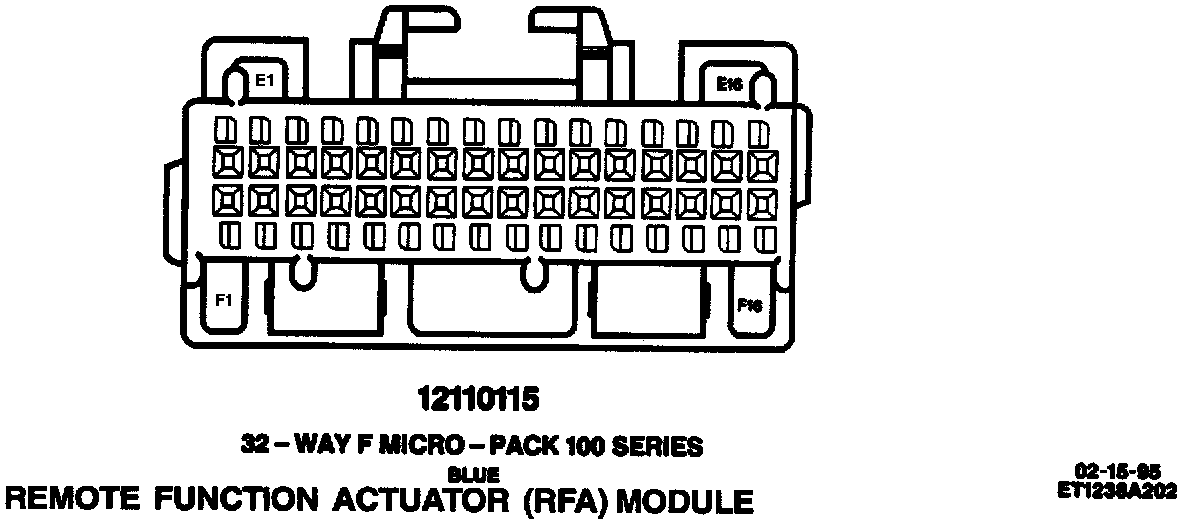

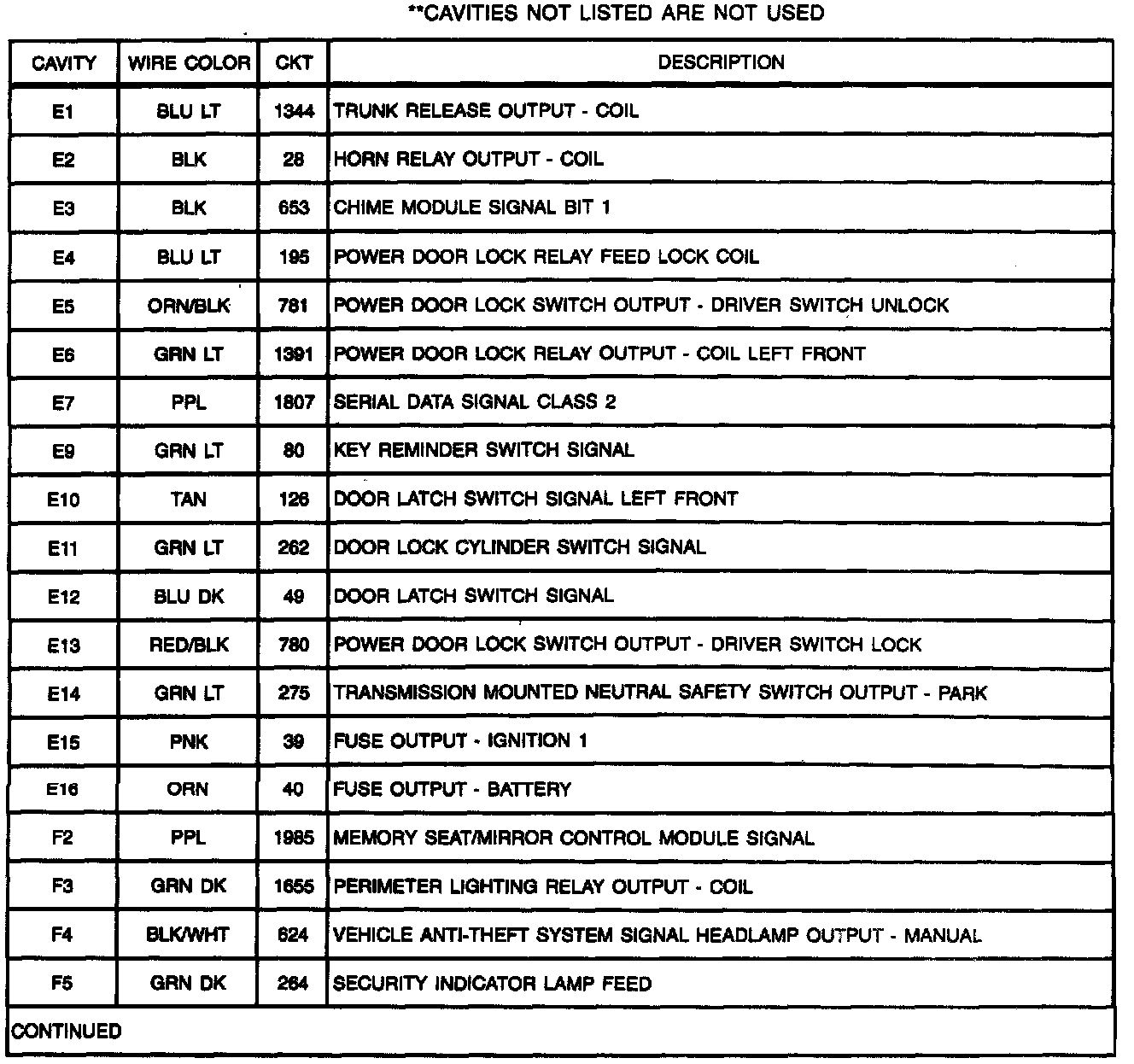

Remote Function Actuator (RFA) Module (Part 1 Of 2):

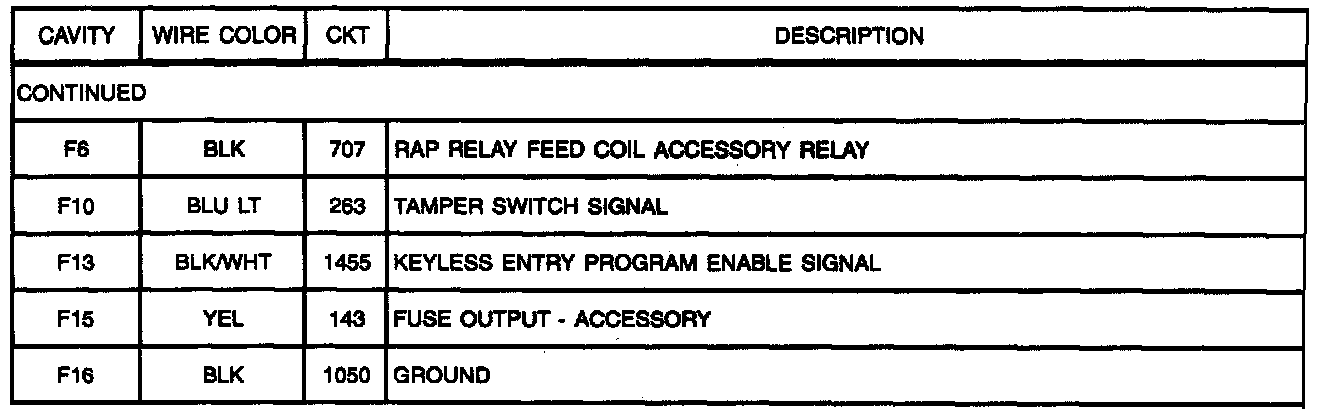

Remote Function Actuator (RFA) Module (Part 2 Of 2):
