Pinout Description

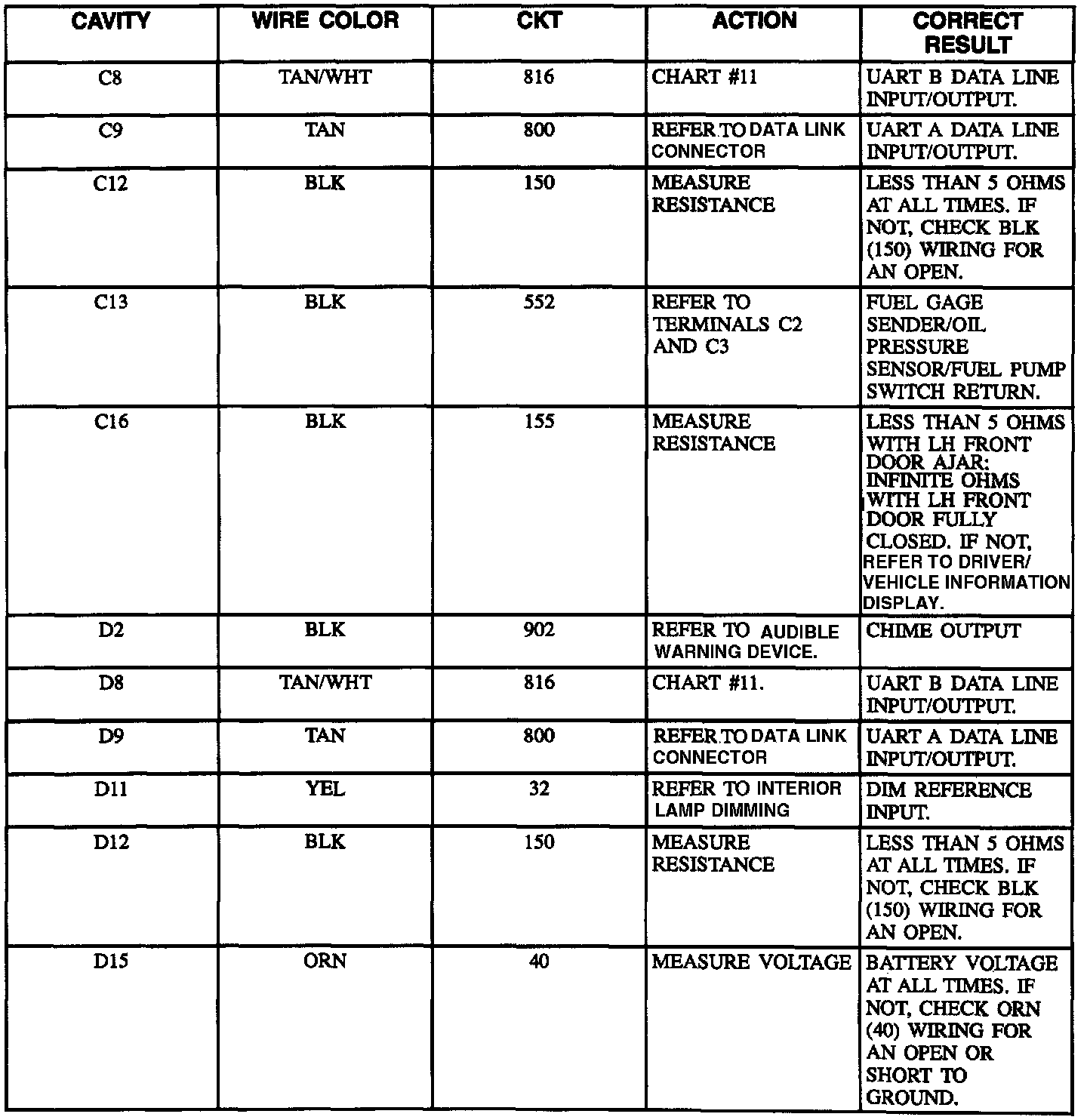

Instrument Cluster Connectors: Connector C2 Pinout (Part 1 Of 2):

Instrument Cluster Connectors: Connector C2 Pinout (Part 2 Of 2):

^ Disconnect instrument cluster connector C2.
^ Make all voltage measurements with ignition switch in RUN unless otherwise indicated.
^ Make all resistance measurements to ground with ignition switch in LOCK unless otherwise indicated.
^ Measure to ground unless another terminal is given.
^ If any measurement is incorrect, check wiring for an open or short to ground; check applicable in-line connectors (see schematic) for proper terminal contact.
^ If all checks and measurements are correct, check instrument cluster connector for proper terminal contact; if OK, replace instrument cluster. Repeat system check.

NOTE: CAVITIES NOT LISTED ARE NOT USED
