Home >> Oldsmobile >> 1996 >> Aurora V8-4.0L VIN C >> Repair and Diagnosis >> Diagrams >> Connector Views >> Engine Control Module >> C2 (Clear) >> Pin Information >> Pins 17-60

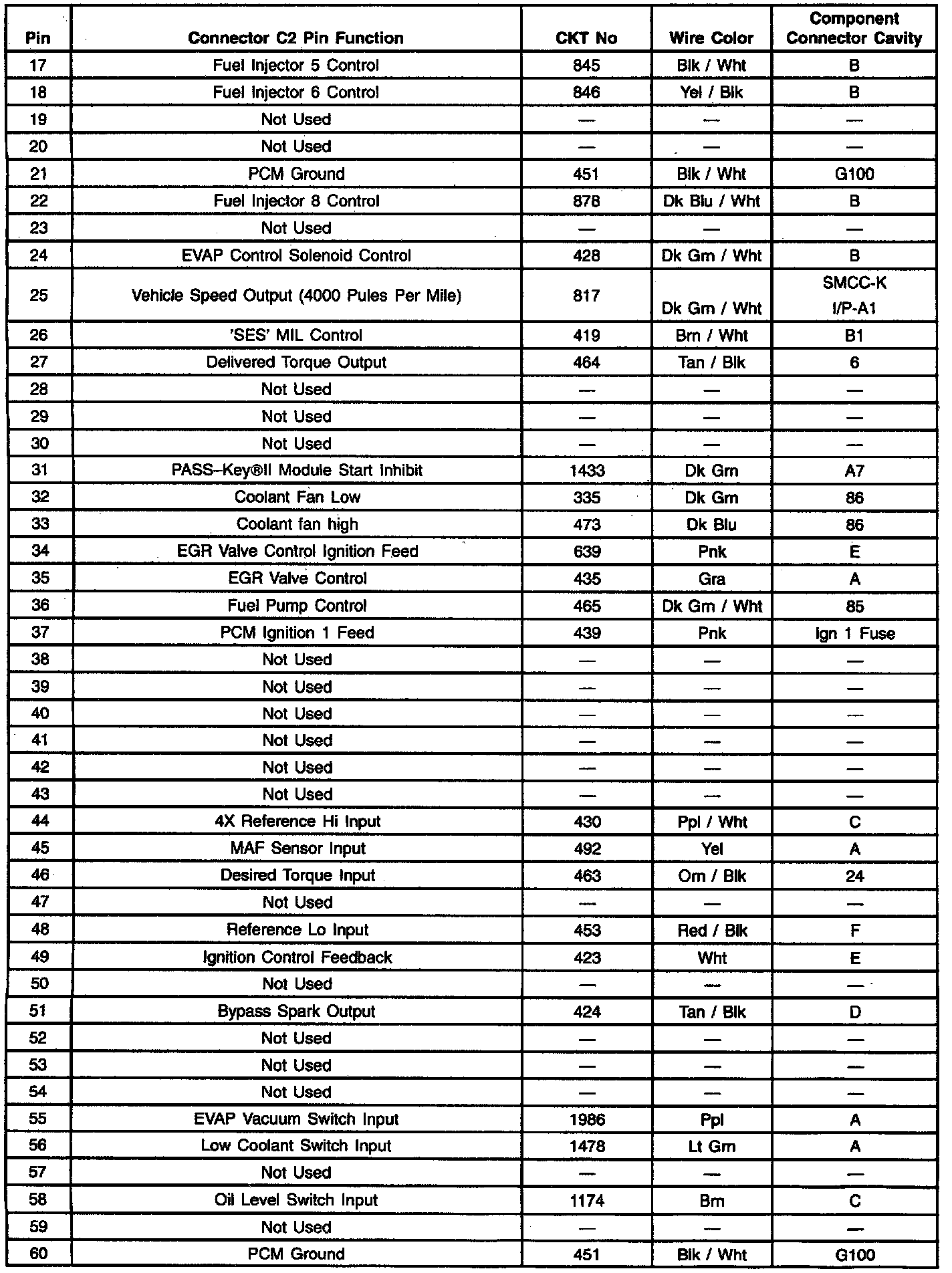

Pins 17-60

Pins 17-60:
