Home >> Oldsmobile >> 1996 >> Aurora V8-4.0L VIN C >> Repair and Diagnosis >> Diagrams >> Connector Views >> Engine Control Module >> C1 (Blue) >> Pin Information >> Pins 27-71

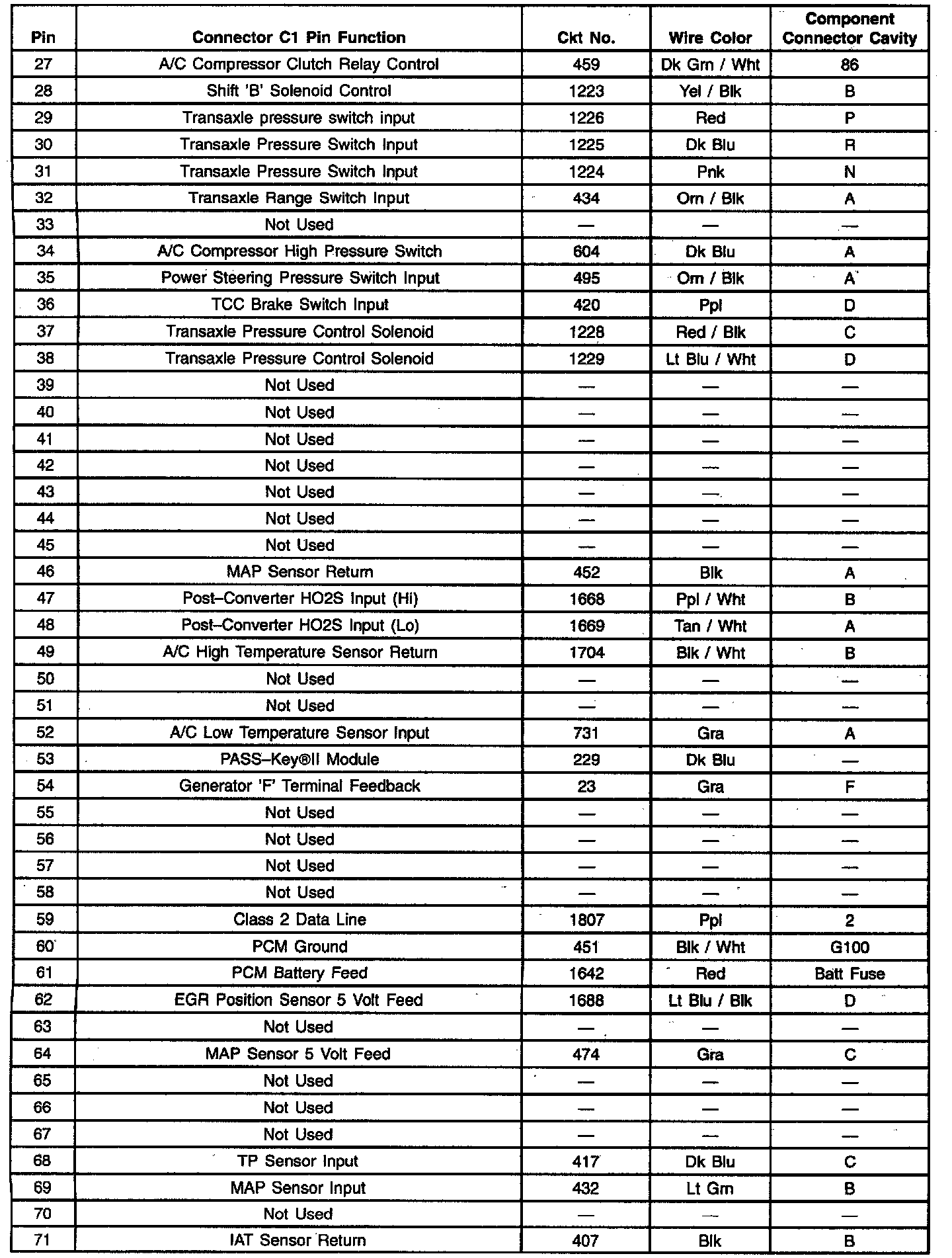

Pins 27-71

Pins 27-51:
