Home >> Oldsmobile >> 1996 >> Aurora V8-4.0L VIN C >> Repair and Diagnosis >> Diagrams >> Components >> Sensors >> Forward/Back Motor Transmission Position Sensor

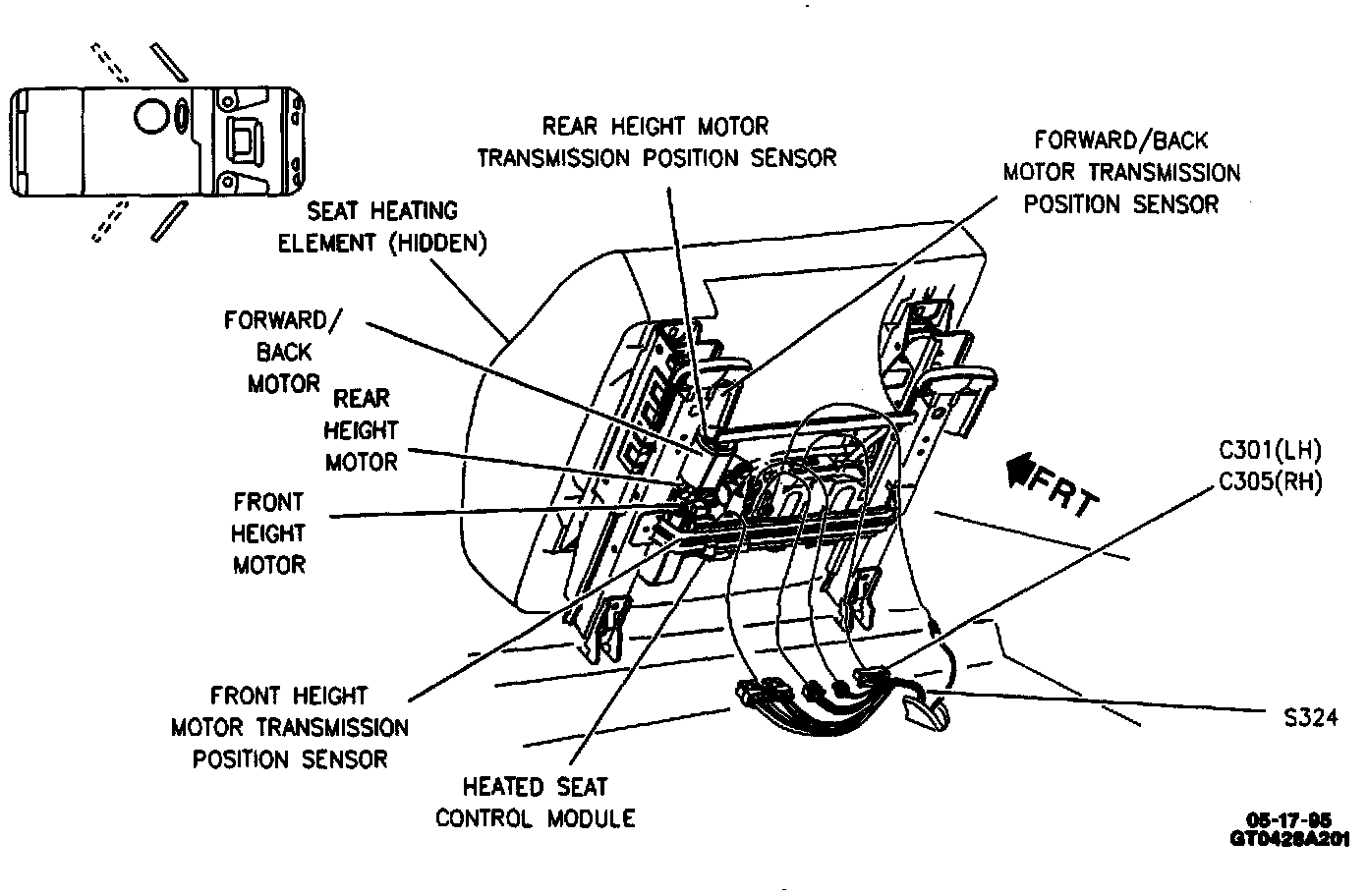

Forward/Back Motor Transmission Position Sensor

Under LH Seat:
