Control Module to PCM Wiring Schematic

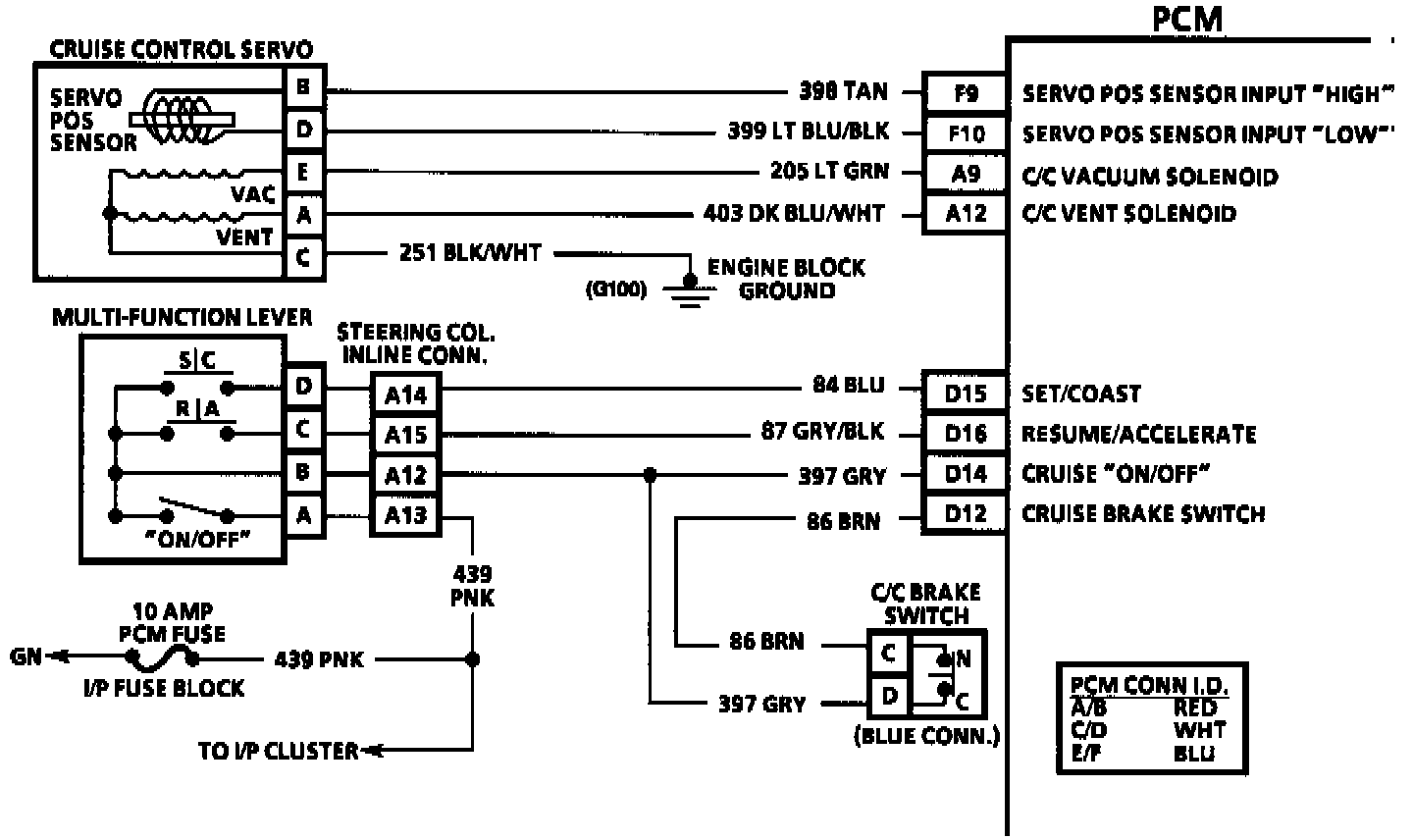

Fig. 7 Cruise Control System Check & Diagnostic Trouble Code Wiring Diagram.:
