Power Mirrors
>>
Chart 1
Chart 1

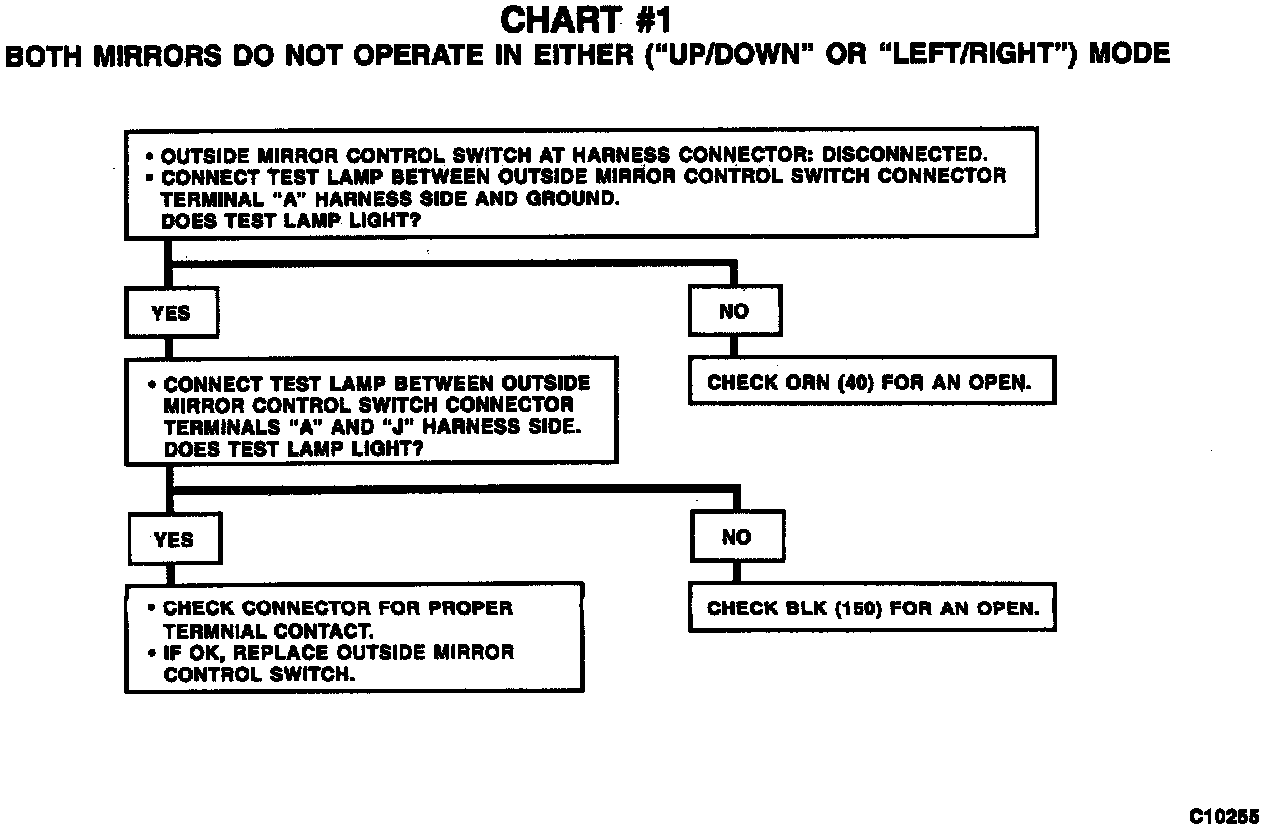

Chart #1 Both Mirrors Do Not Operate In Either (Up/Down Or Left/Right) Mode:
