Chart 7 LH Front Door Lock Actuator Does Not Operate
Chart 7 LH Front Door Lock Actuator Does Not Operate

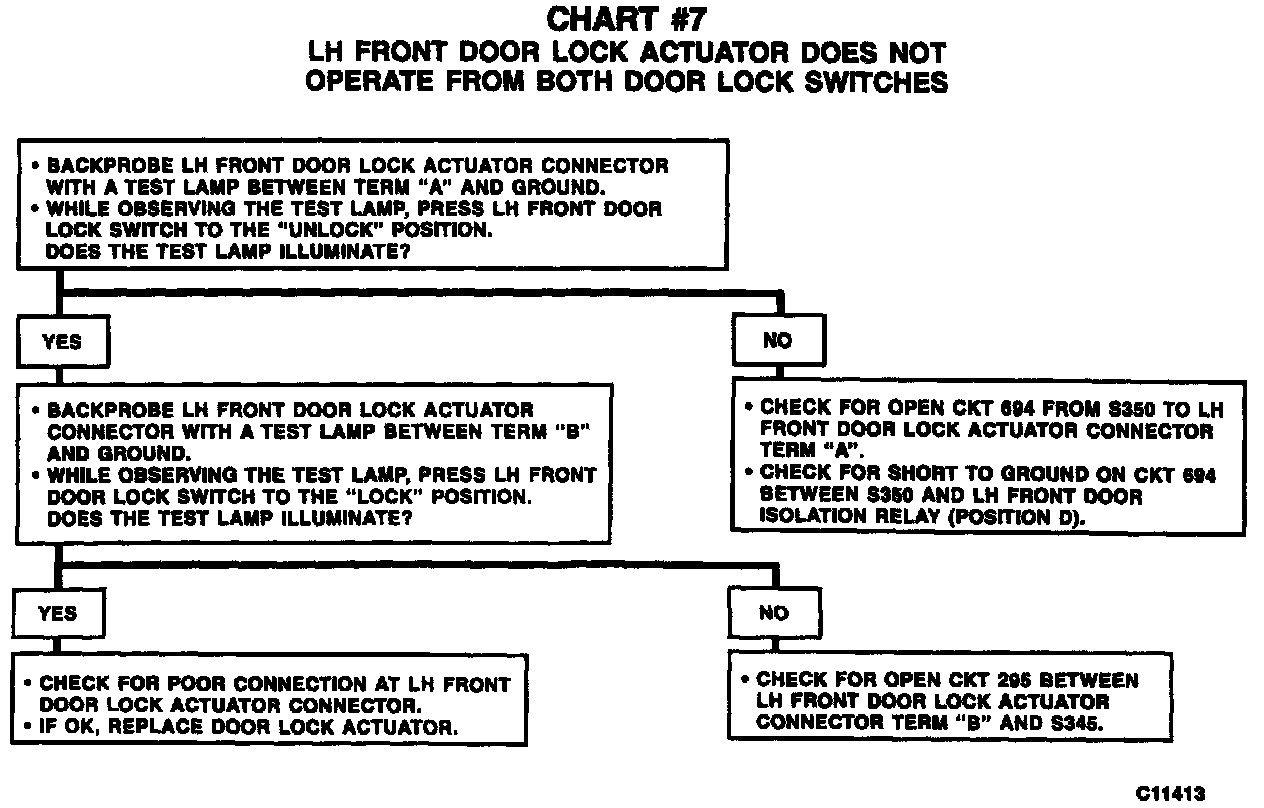

Chart #7 LH Front Door Lock Actuator Does Not Operate:
