Home >> Oldsmobile >> 1996 >> Aurora V8-4.0L VIN C >> Repair and Diagnosis >> Body and Frame >> Locks >> Power Locks >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Symptom Diagnostic Charts >> Chart 3 Lock Function Does Not Operate

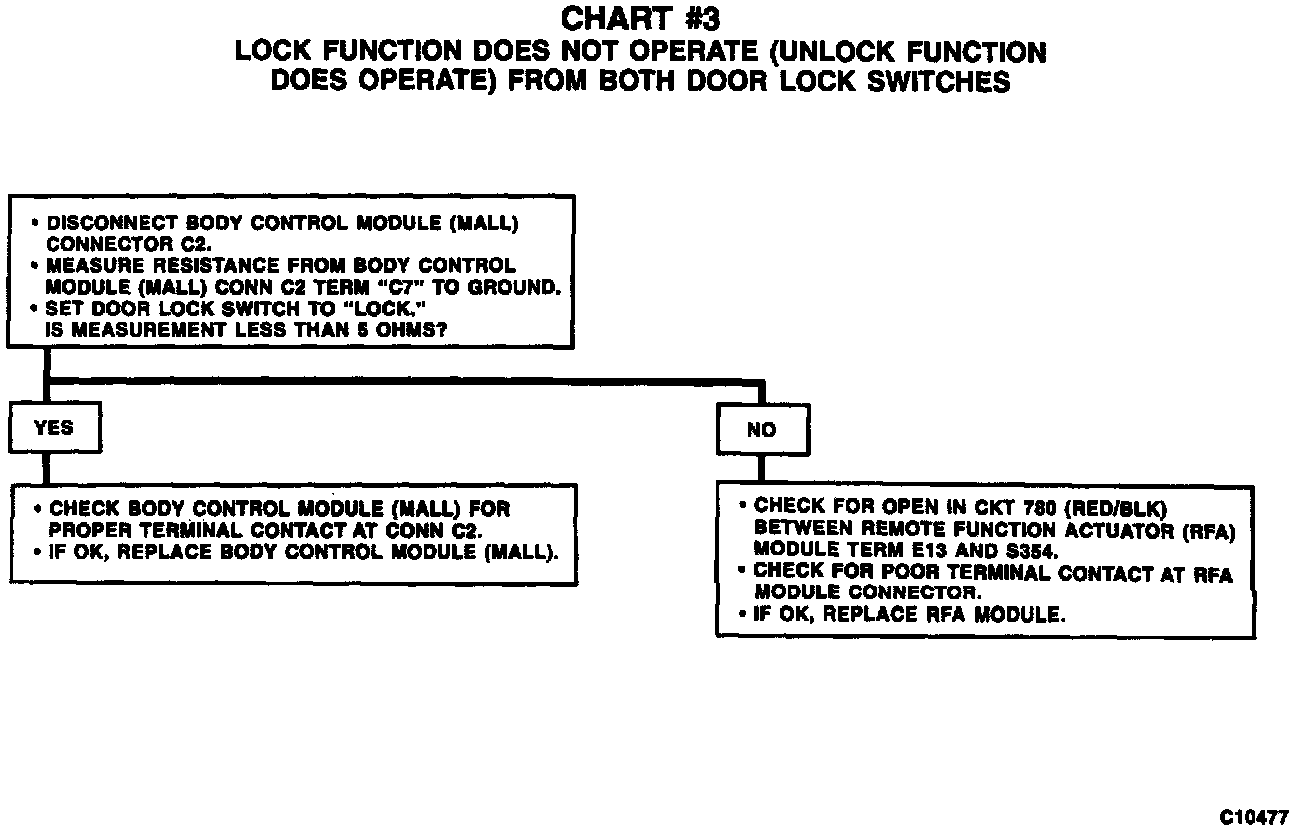

Chart 3 Lock Function Does Not Operate

Chart #3 Lock Function Does Not Operate (Unlock Function Does Operate):
