Chart 1 Power Door Locks Do Not Operate
Chart 1 Power Door Locks Do Not Operate

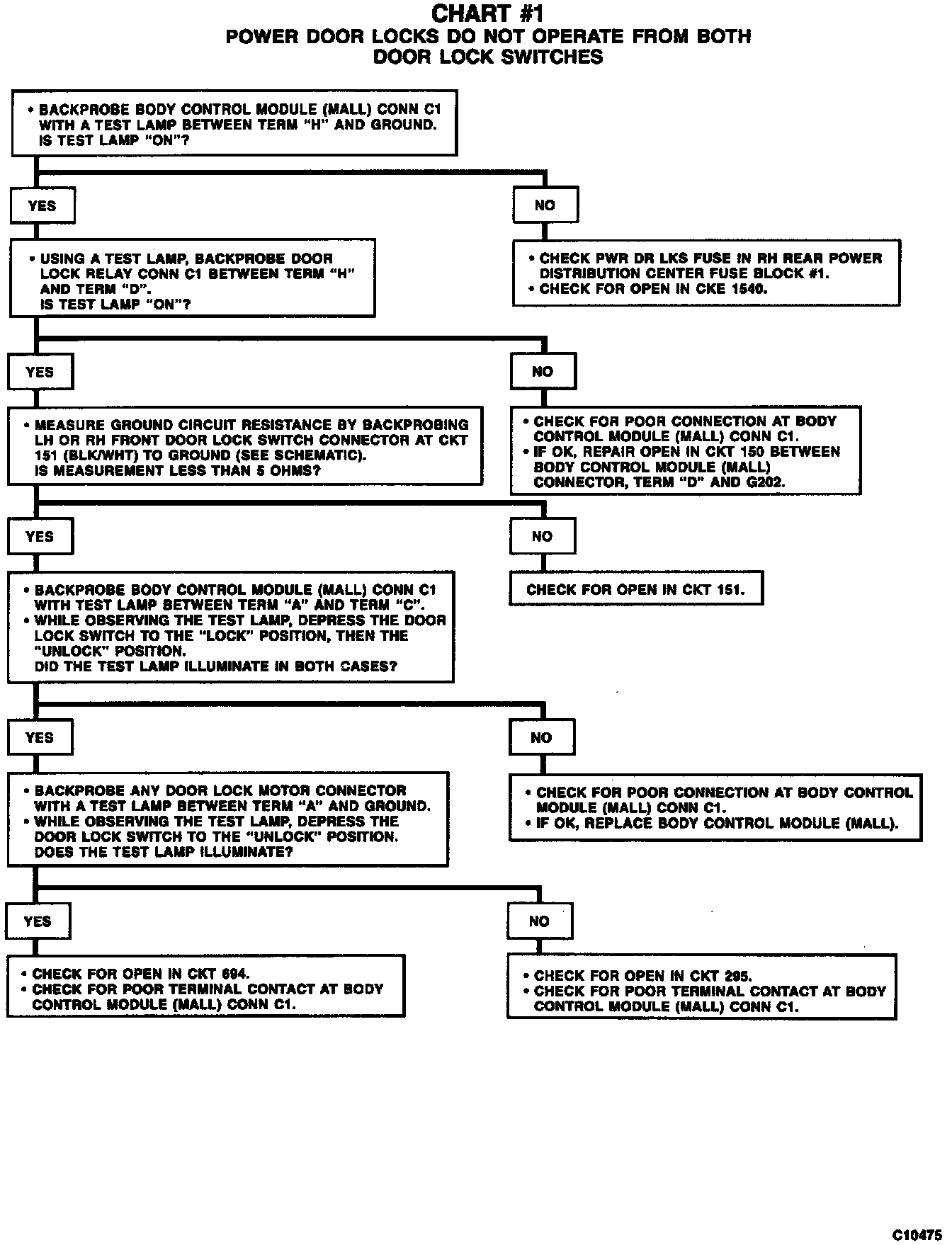

Chart #1 Power Door Locks Do Not Operate From Both Door Lock Switches:
