Home >> Oldsmobile >> 1996 >> Aurora V8-4.0L VIN C >> Repair and Diagnosis >> Body and Frame >> Doors, Hood and Trunk >> Trunk / Liftgate >> Testing and Inspection >> Component Tests and General Diagnostics

Component Tests and General Diagnostics

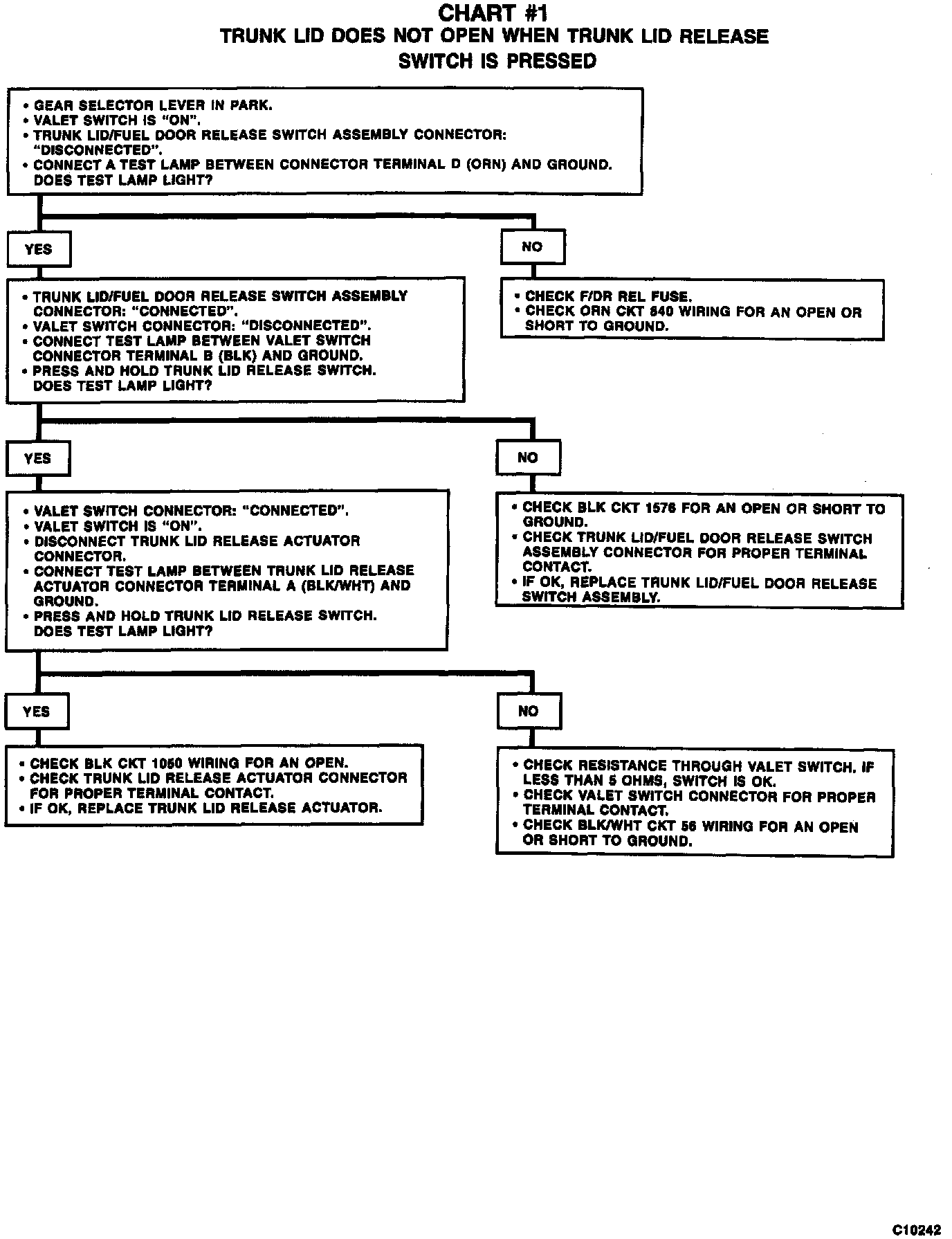

Chart #1 Trunk Lid Does Not Open When Trunk Lid Release Switch Is Pressed:
