Home >> Oldsmobile >> 1996 >> Aurora V8-4.0L VIN C >> Repair and Diagnosis >> Accessories and Optional Equipment >> Driver/Vehicle Information Display >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Symptom Diagnostic Charts >> Chart #6 LH Front Door Ajar Input Test

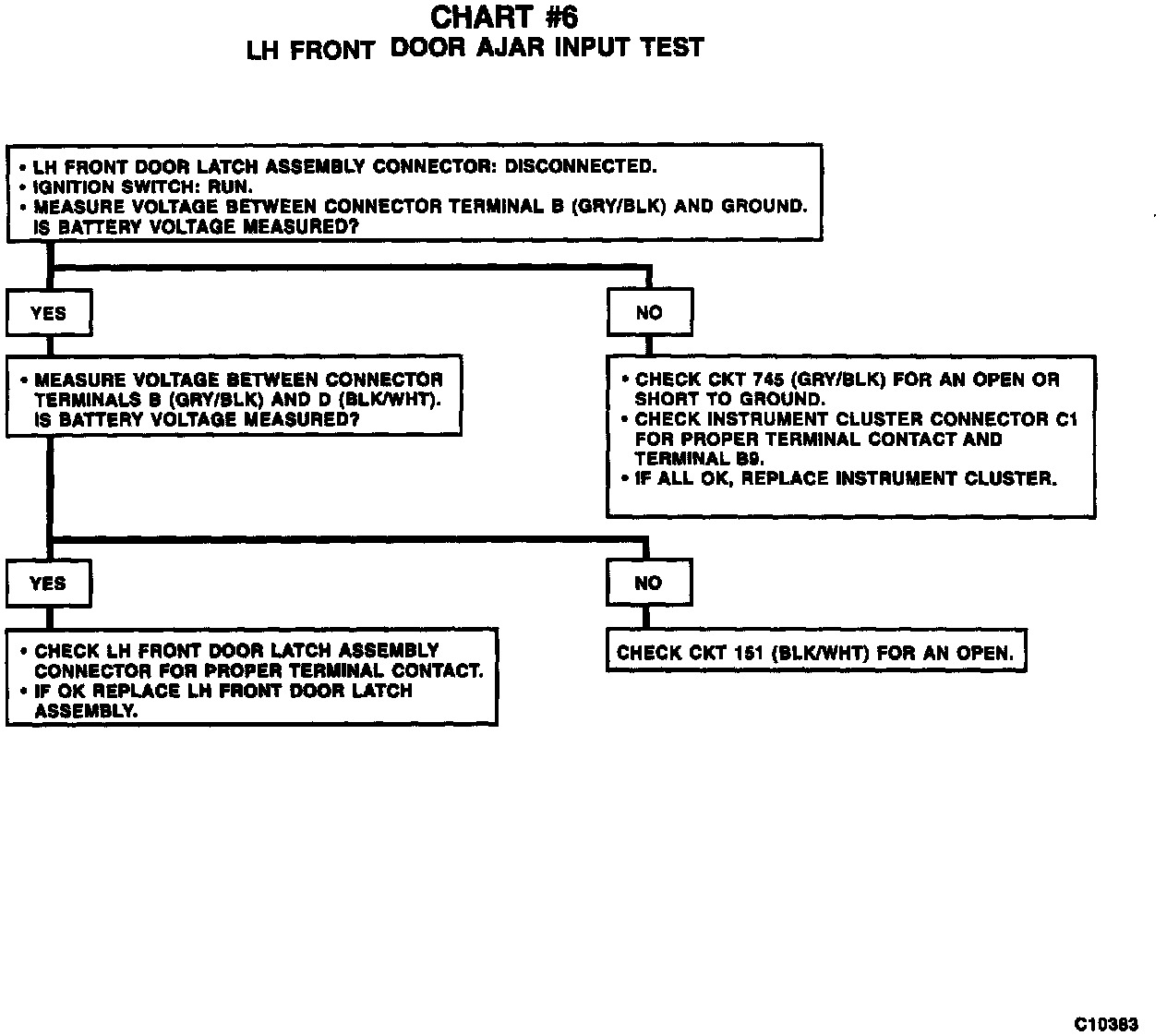

Chart #6 LH Front Door Ajar Input Test

Chart #6 LH Front Door Ajar Input Test:
