Home >> Oldsmobile >> 1996 >> Aurora V8-4.0L VIN C >> Repair and Diagnosis >> Accessories and Optional Equipment >> Antitheft and Alarm Systems >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Universal Theft Deterrent (RPO UA6) >> System/Symptom Charts

System/Symptom Charts

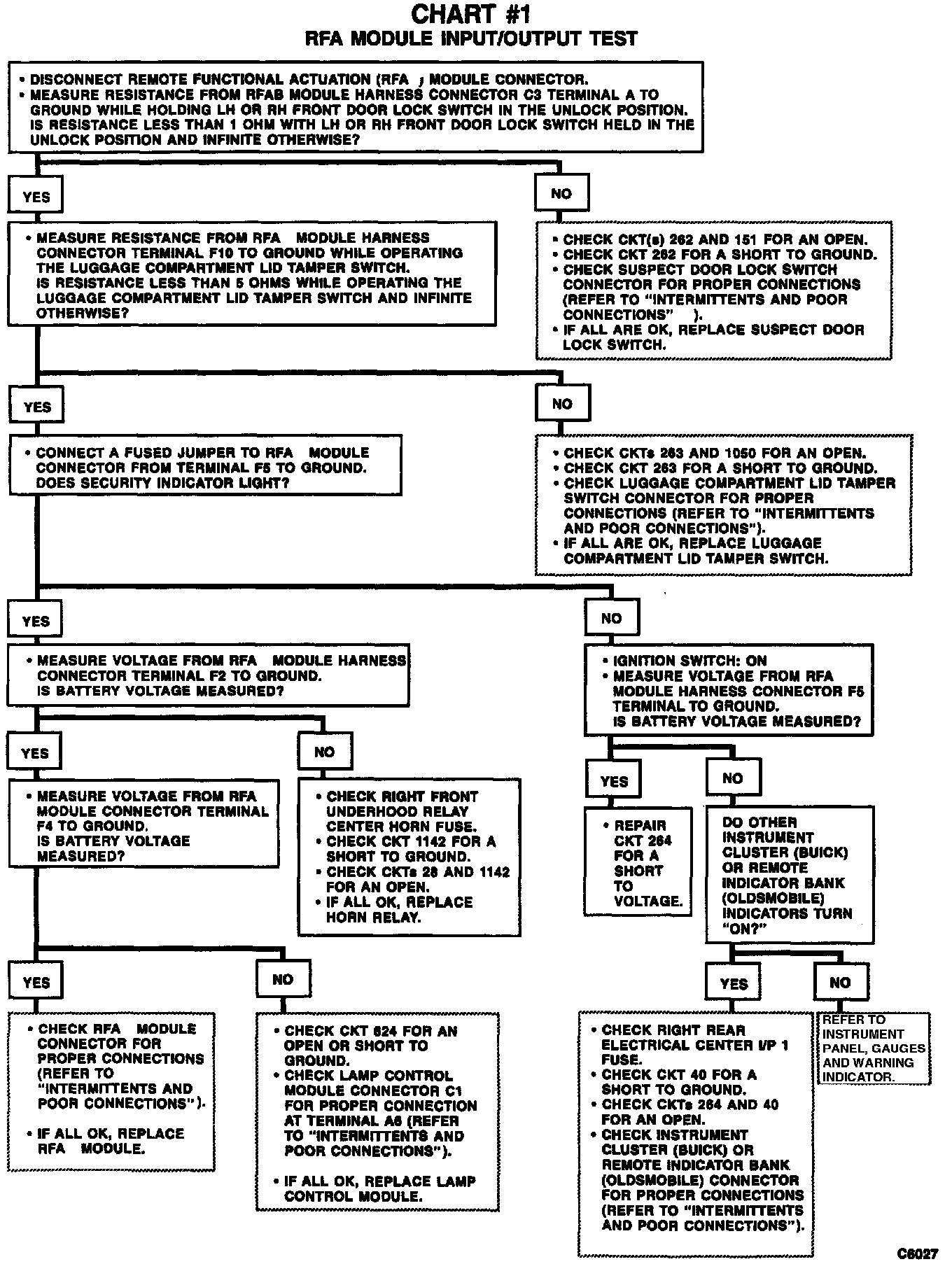

Chart #1 RFA Module Input/Output Test:
