Home >> Oldsmobile >> 1996 >> Aurora V8-4.0L VIN C >> Repair and Diagnosis >> Accessories and Optional Equipment >> Antitheft and Alarm Systems >> Keyless Entry >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Symptom Diagnostic Charts >> Chart 2 Door Lock/Unlock Does Not Operate

Chart 2 Door Lock/Unlock Does Not Operate

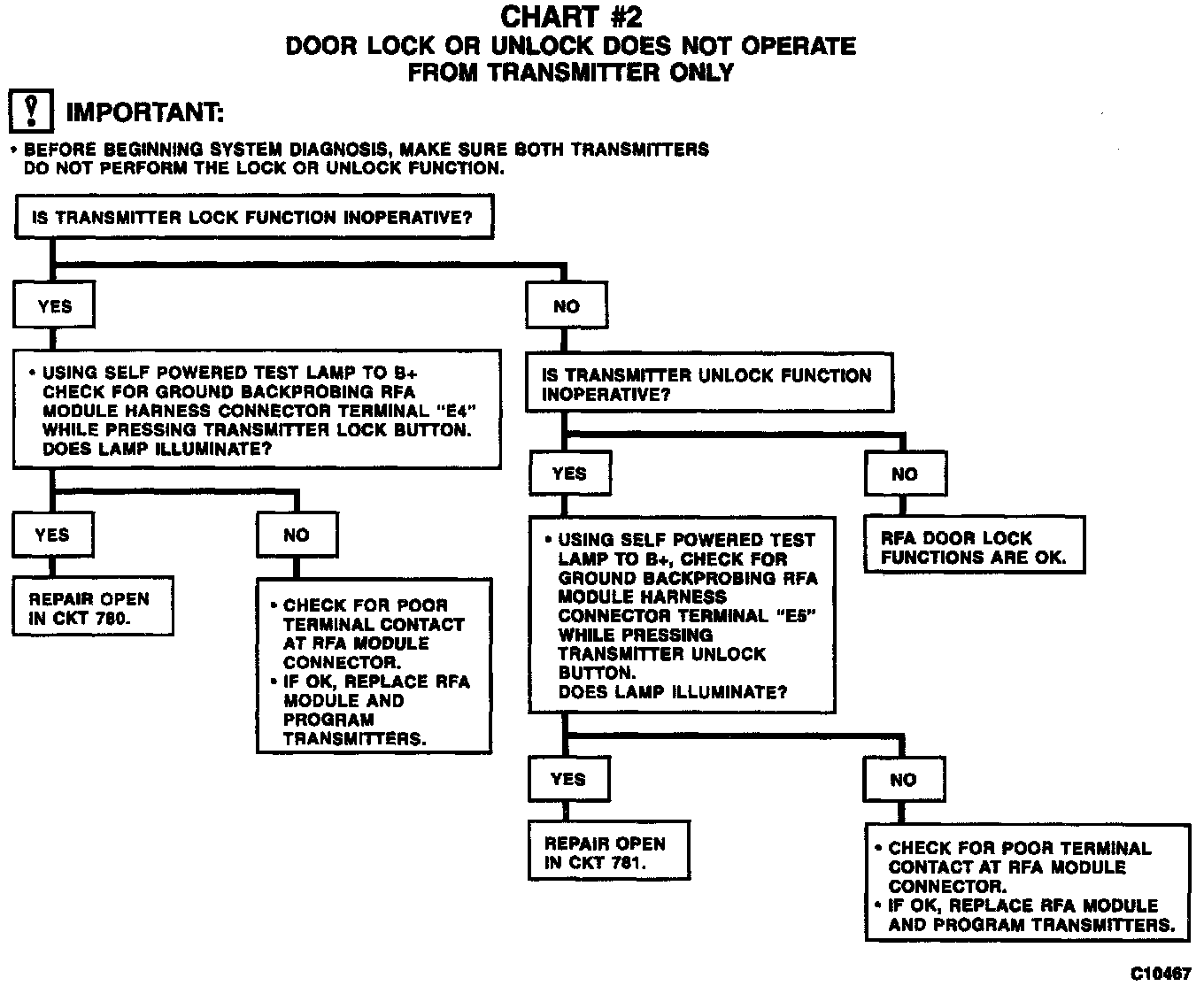

Chart #2 Door Lock/Unlock Does Not Operate From Transmitter Only:
