Home >> Oldsmobile >> 1996 >> Aurora V8-4.0L VIN C >> Repair and Diagnosis >> Accessories and Optional Equipment >> Antitheft and Alarm Systems >> Keyless Entry >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Symptom Diagnostic Charts >> Chart 1 Either Door Lock Switch Inoperative

Chart 1 Either Door Lock Switch Inoperative

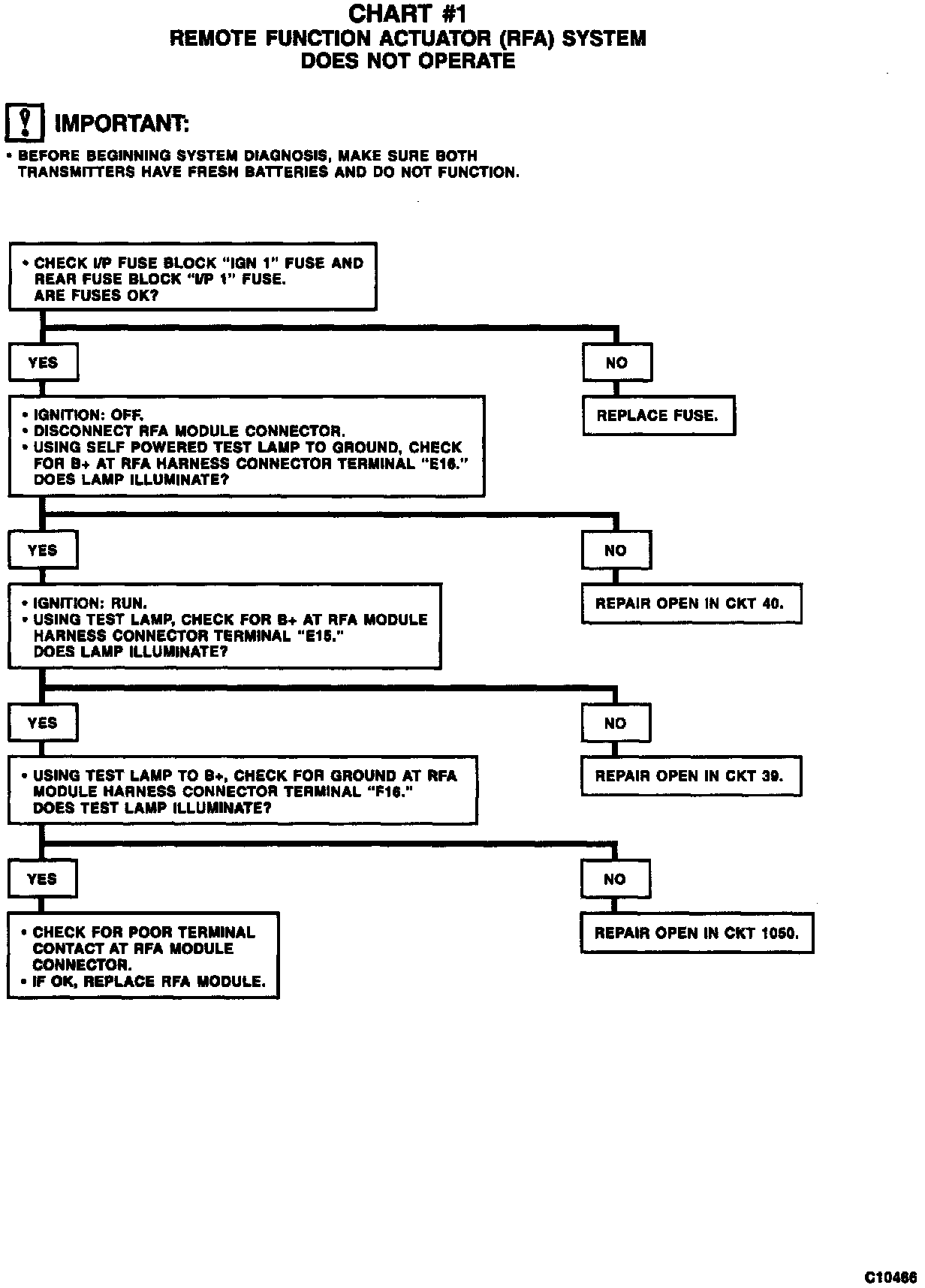

Chart #1 Remote Function Actuator (RFA) System Does Not Operate:
