Home >> Oldsmobile >> 1996 >> Achieva V6-3100 3.1L VIN M SFI >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> System Specifications >> Fastener Tightening Specifications - Intake Manifold

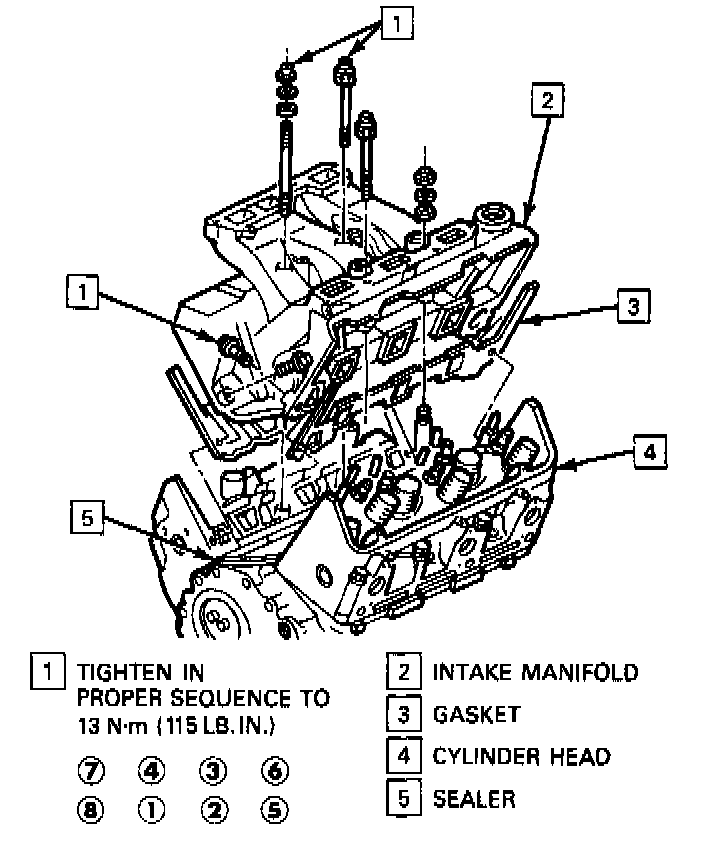

Fastener Tightening Specifications - Intake Manifold

Image Updated With TSB 57-61-06:
