Home >> Oldsmobile >> 1996 >> Achieva V6-3100 3.1L VIN M SFI >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> System Specifications >> Fastener Tightening Specifications - Engine

Fastener Tightening Specifications - Engine

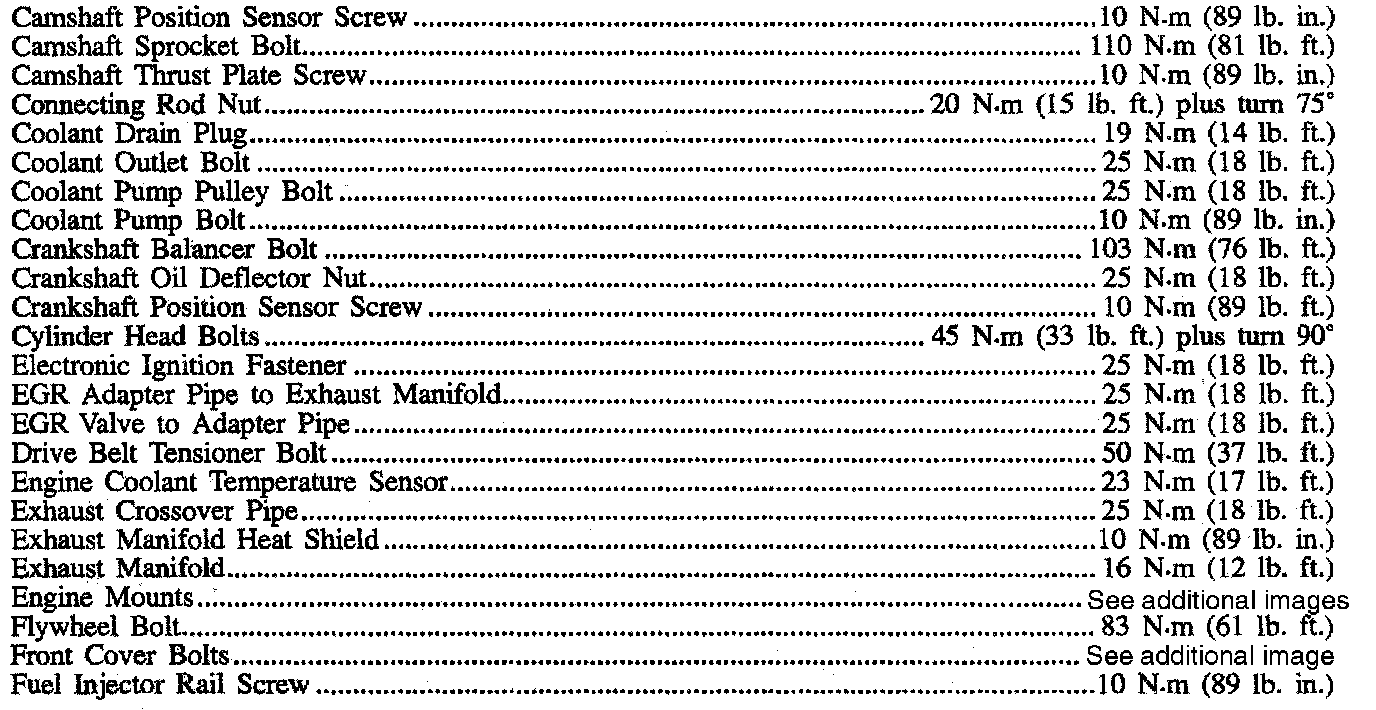

Torque Specifications (1 Of 2):

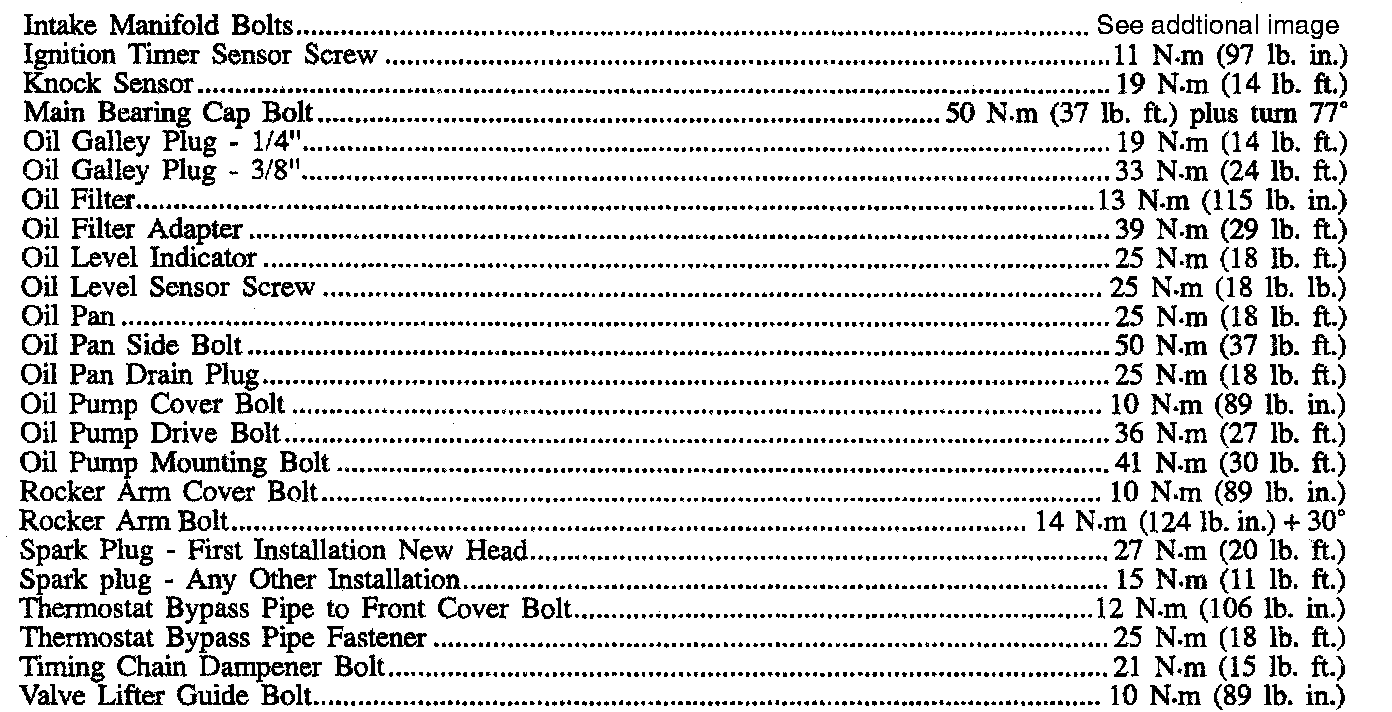

Torque Specifications (2 Of 2):
