Home >> Oldsmobile >> 1996 >> Achieva V6-3100 3.1L VIN M SFI >> Repair and Diagnosis >> Diagrams >> Components >> Miscellaneous Components >> Clips

Clips

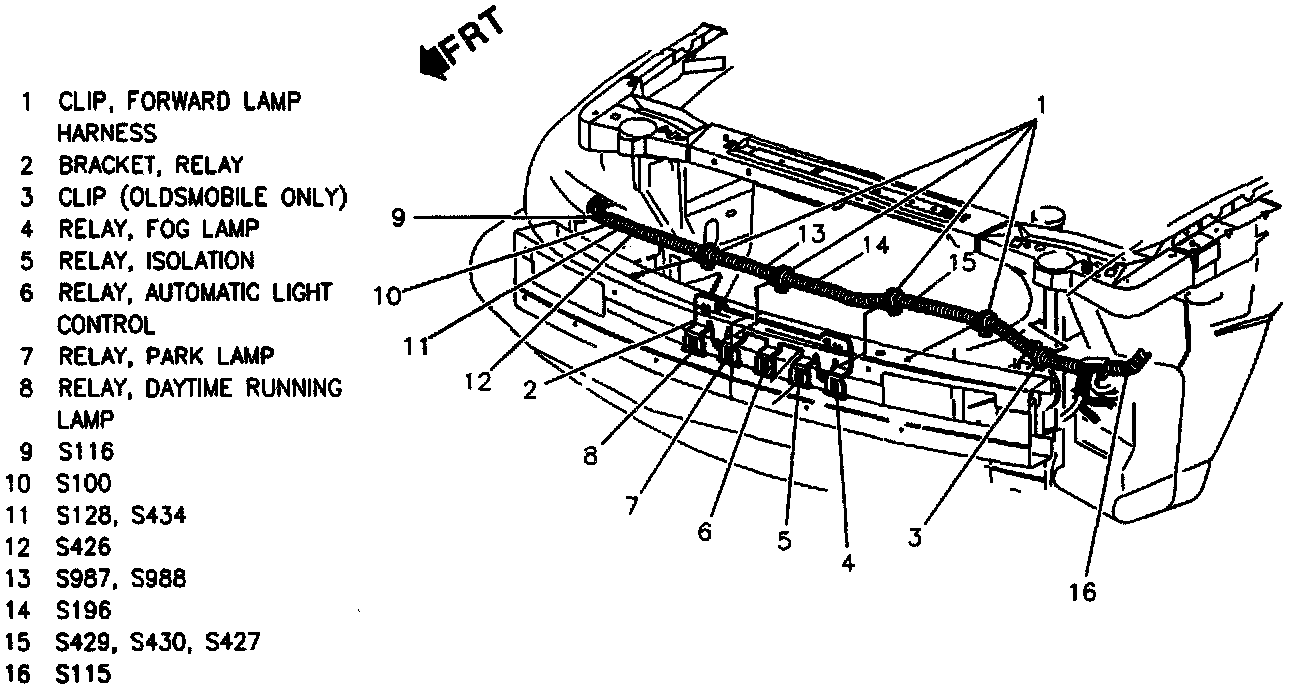

Front Impact Bar:

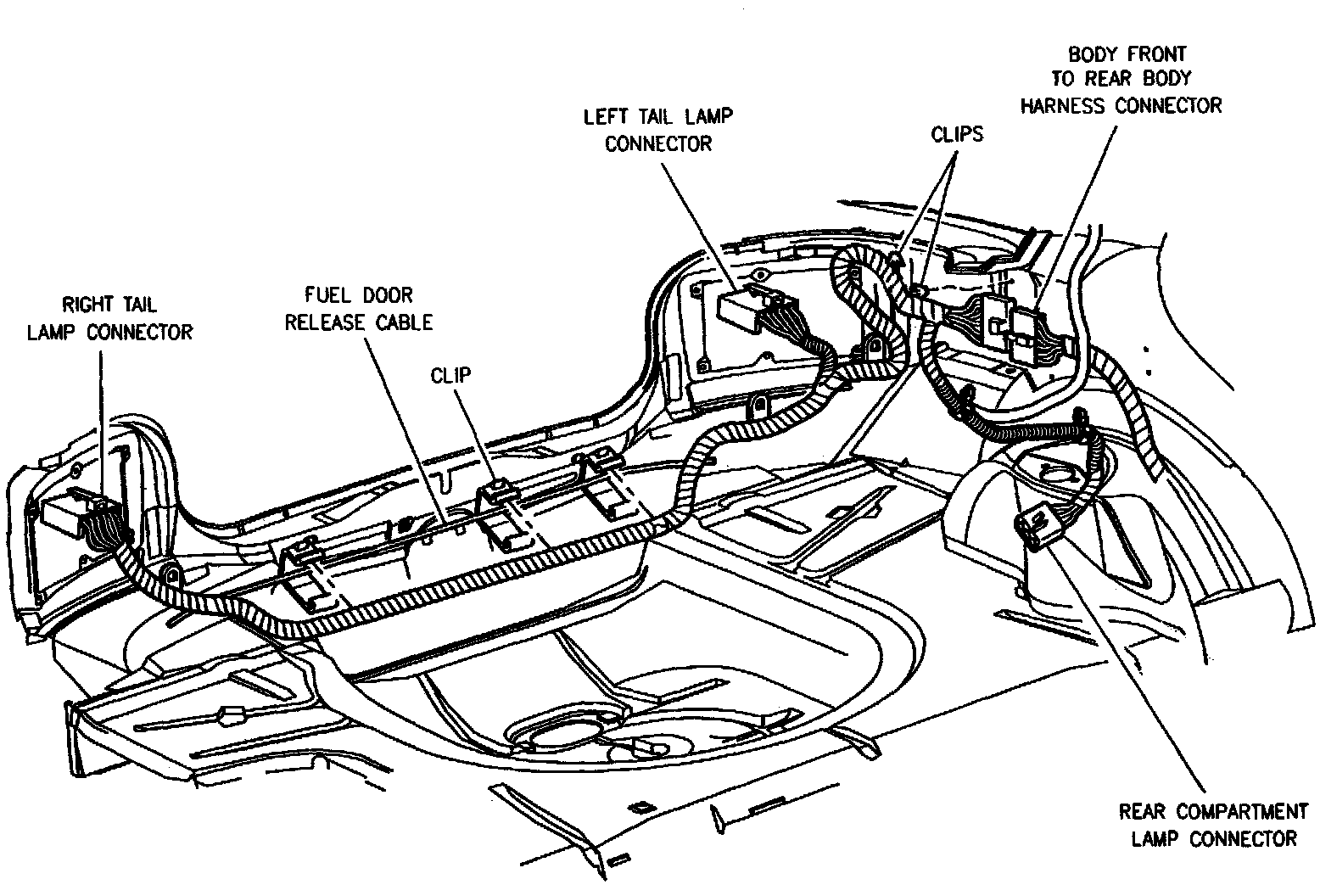

Rear Body Harness:

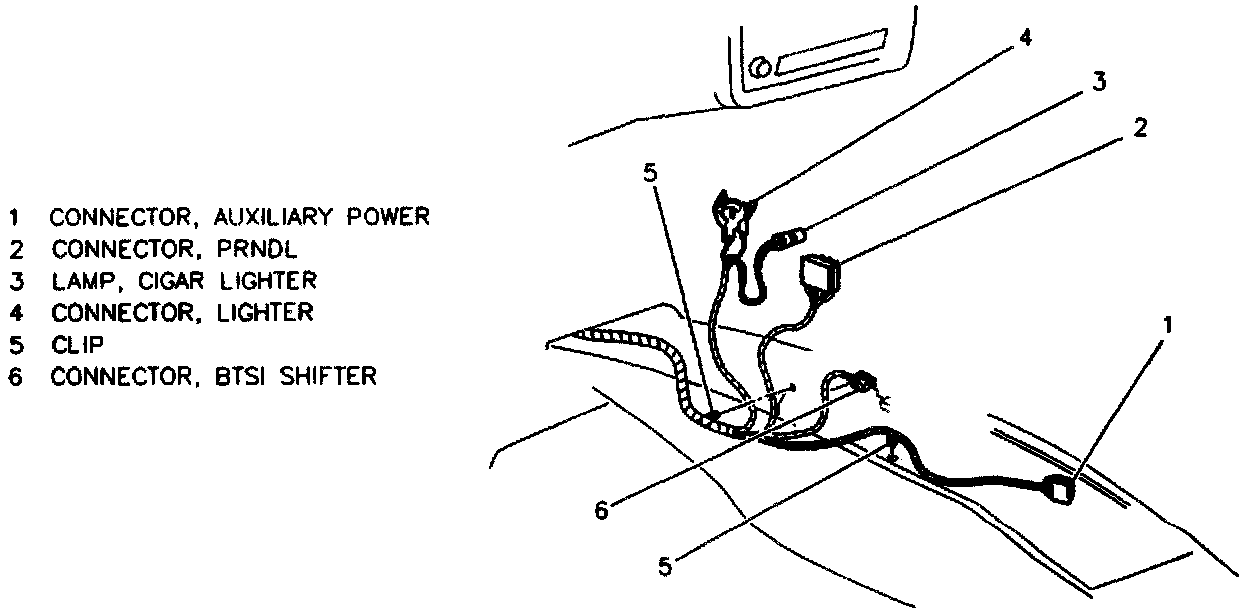

Center Console:

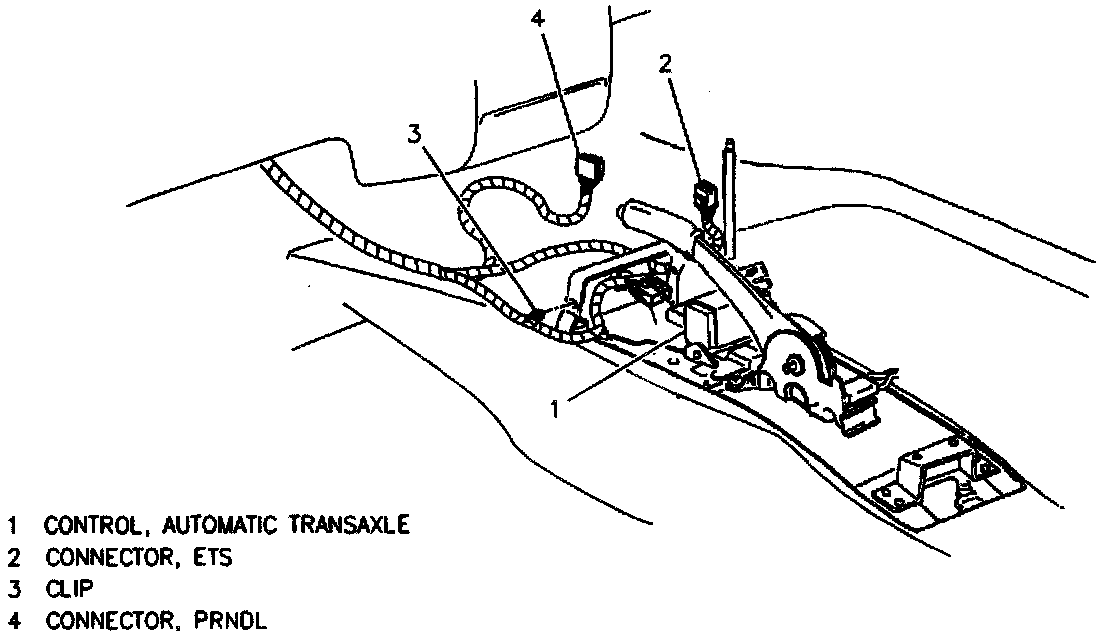

Center Console:

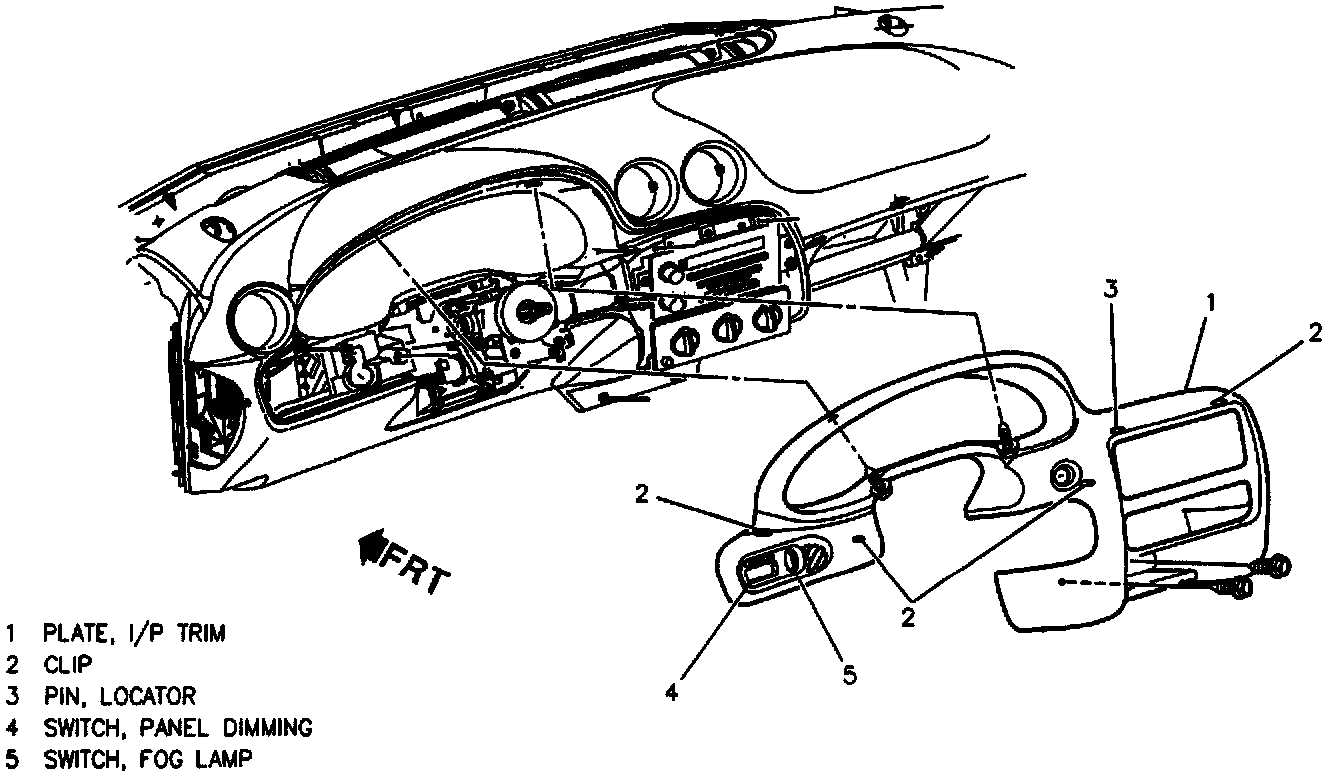

LH Side Of I/P:
