Side Air Bag Module

COMPONENT PARTS

AIR BAG MODULE : Side air bag module






- Side air bag module is built into seatback side.

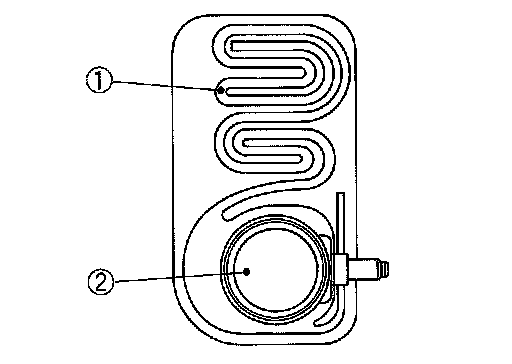

- Side air bag module mainly consists of air bag (1) and inflator (2)
which inflates air bag.

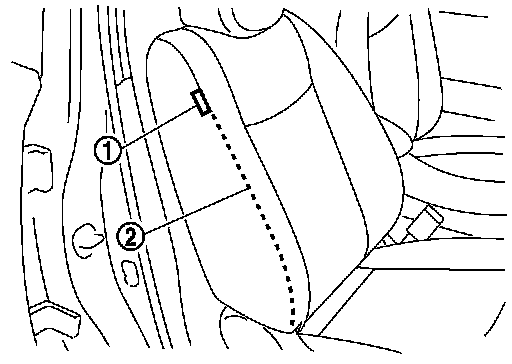

- Side air bag inflates through seatback side stitch (2).
- Identification mark (1) is installed to seatback side stitch indicating that side air bag is equipped.
