Passenger Air Bag Module

COMPONENT PARTS

AIR BAG MODULE : Passenger air bag module






- Passenger air bag module is built into instrument panel.

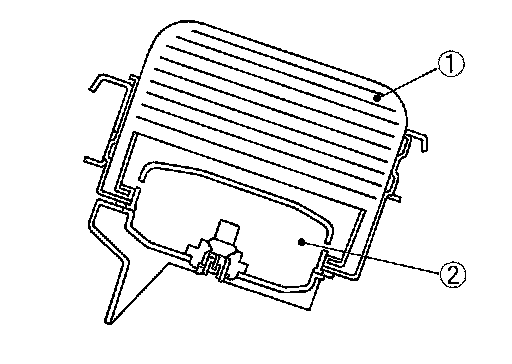

- Passenger air bag module mainly consists of air bag (1) and inflator (2) which inflates air bag.





- Passenger air bag inflates by breaking instrument panel surface (A).
