Driver Air Bag Module

COMPONENT PARTS

AIR BAG MODULE : Driver air bag module






- Driver air bag module is built into steering wheel.

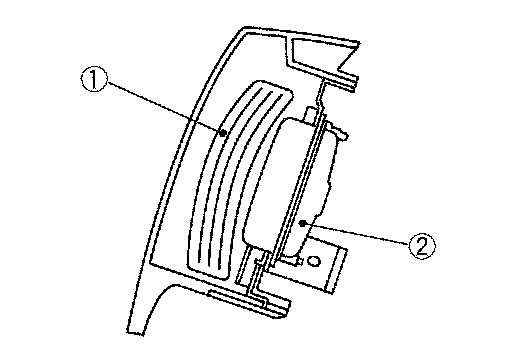

- Driver air bag module mainly consists of air bag (1) and inflator (2)
which inflates air bag.

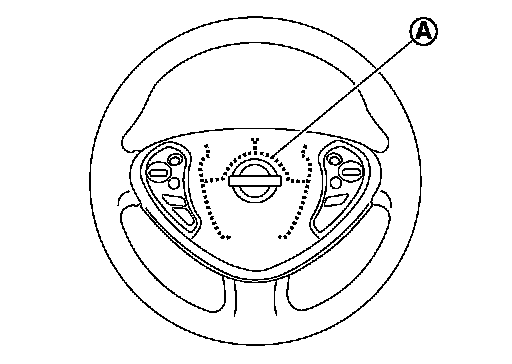

- Driver air bag inflates by breaking steering wheel center pad surface (A).
