Removal and Installation

ELECTRIC WATER PUMP

Removal and Installation


CAUTION:
Do not use an electric water pump that is dropped, or subjected to excessive impact due to contact with other parts.

REMOVAL

1.Drain coolant from radiator. Refer to "Draining" Coolant Draining and Refilling.

CAUTION:
Drain the coolant when it is cool.
2.Remove the front side of the right fender protector to create space for work. Refer to "FENDER PROTECTOR : Exploded View" Exploded View.

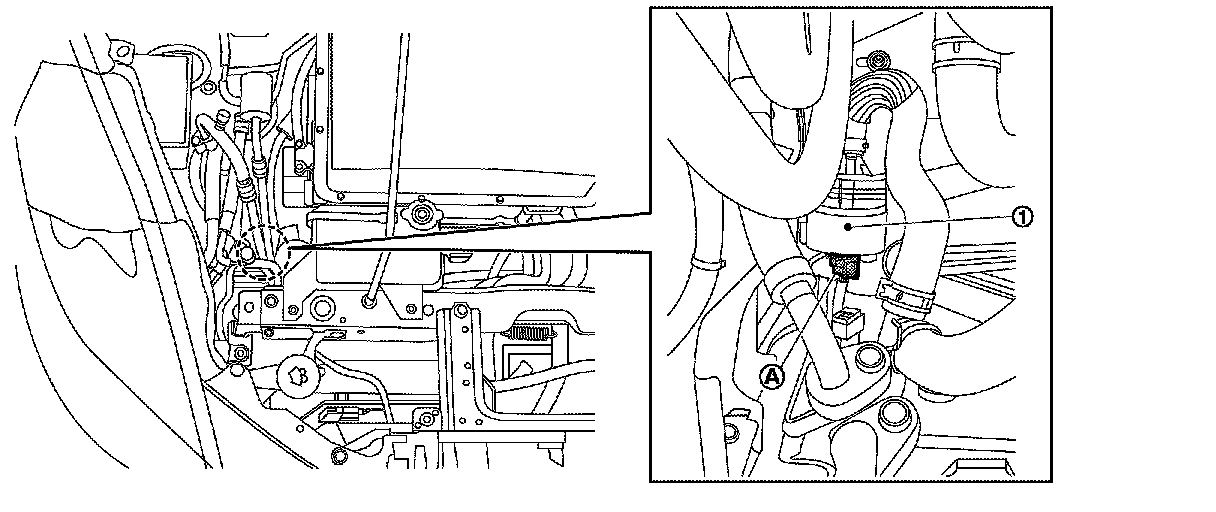

3.Disconnect the electric water pump harness connector .









4.Disconnect the water hose .

Arrow = Vehicle Front

CAUTION:
- Take care that coolant does not contact the high voltage connectors.
- If coolant contacts a high voltage connector, immediately use an air blow and fully remove the moisture.

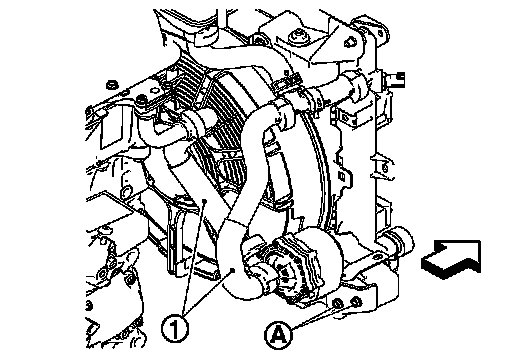

5.Remove the 2 mounting bolts and remove the electric water pump together with the bracket.
6.Remove the electric water pump harness connector clamp from the bracket.

INSTALLATION

Note the following, and install in the reverse order of removal.

CAUTION:
- Hold the electric water pump with one hand while inserting the water hose into the electric water pump.
- Be sure to perform correct air bleeding after adding coolant. Refer to "Refilling" Refilling.
