Coolant Draining and Refilling

COOLANT

Draining


CAUTION:
- Be sure to drain when coolant temperature is cold.
- This should be performed so that coolant does not come in contact with surrounding parts.
1.Remove Li-ion battery undercover.

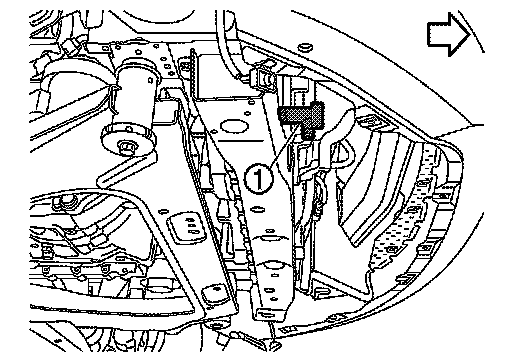

2.Remove radiator drain plug , and drain coolant.





3.Remove reservoir tank and drain the coolant as per the following procedure.
1.Remove radiator upper grille cover.
2.Remove water hose (reservoir tank side) and reservoir tank mounting bolts.
