Removal and Installation

COOLING FAN

Removal and Installation


REMOVAL

1.Remove the radiator upper grille. Refer to "RADIATOR UPPER GRILLE : Removal and Installation" .
2.Remove the reservoir tank installation bolts and move the reservoir tank to a location where it does not interfere with work.
3.Remove the quick charge port and normal charge port. Refer to "Removal and Installation" (quick charge port) and "Removal and Installation" {[VC-125, "Removal and Installation"]LINK_TO:[0000000000000000]} (normal charge port).
4.Disconnect the cooling fan control module harness connector.
5.Remove the cooling fan control module harness clip .





6.Remove the cooling fan assembly mounting bolt.

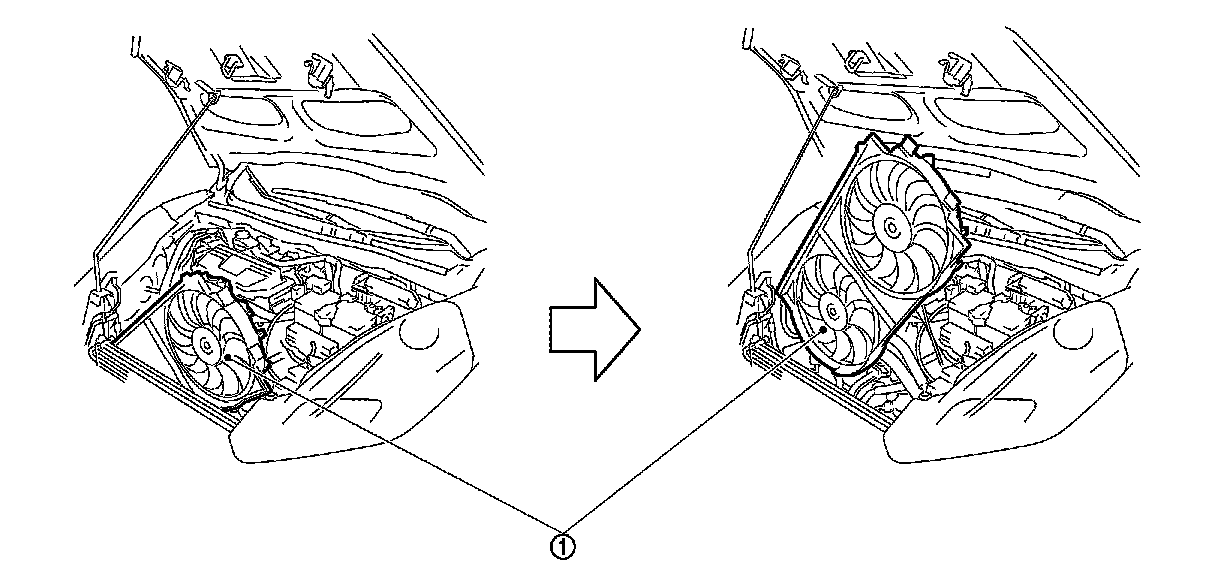

7.Pull out and remove the cooling fan assembly at an angle, with the left side of the assembly raised up.






CAUTION:
Be careful not to damage radiator core.

INSTALLATION

Install in the reverse order of removal.
