Radiator

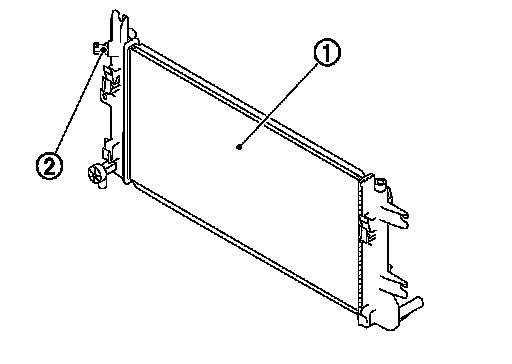

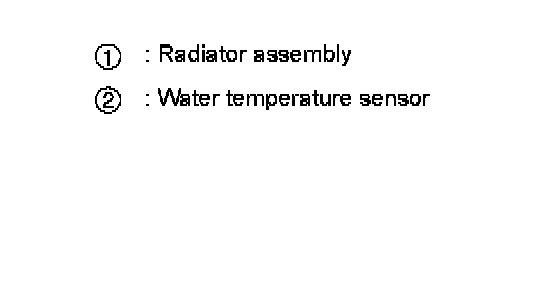

COMPONENT PARTS

Radiator






- This radiator is a side-flow type and made of aluminum.
- The radiator side tank has a water temperature sensor.
