High Voltage Cooling System

SYSTEM

High Voltage Cooling System

- The HV cooling system is the system which cools the following high-voltage components.
- Traction motor
- Traction motor inverter
- PDM (Power Delivery Module)
- Coolant is circulated by means of the electric water pump, and the electric water pump is controlled by the
VCM (Vehicle Control Module).

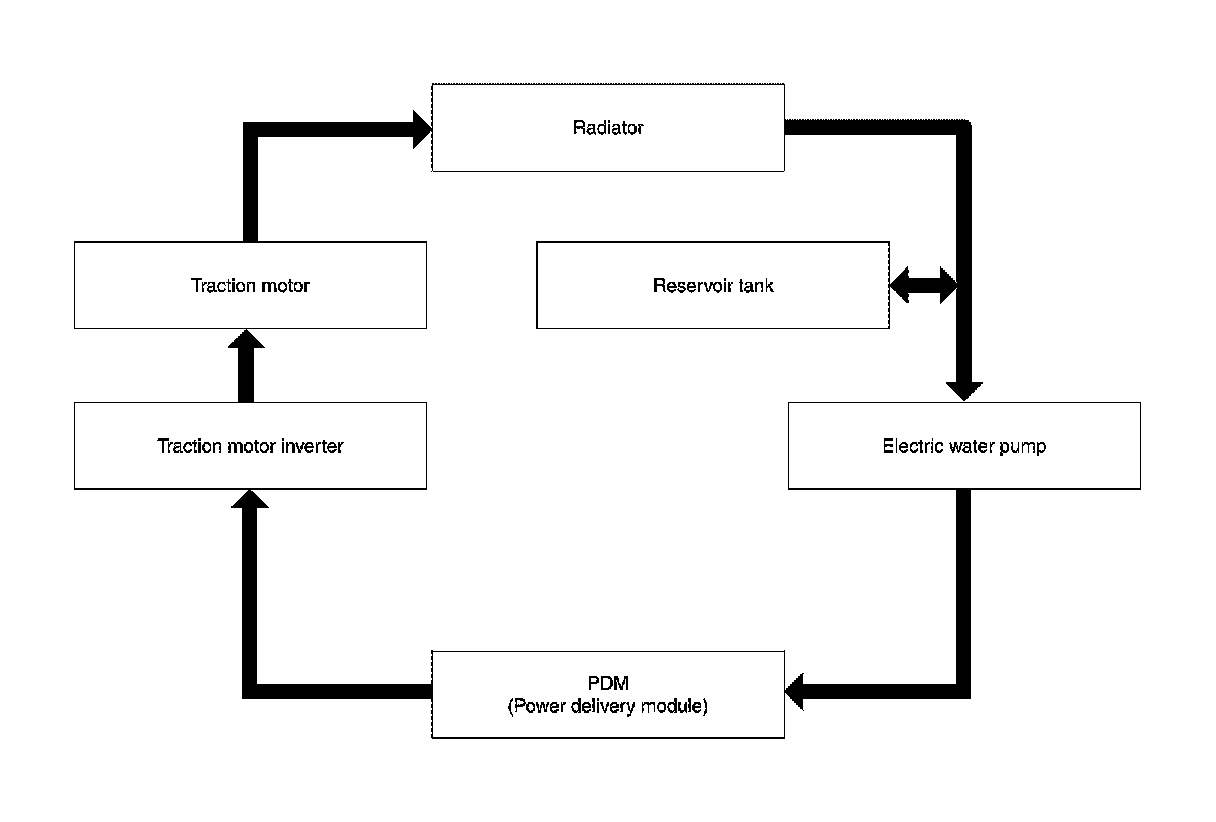

COOLING SYSTEM DIAGRAM
