Cooling fan (electric fan)

COMPONENT PARTS

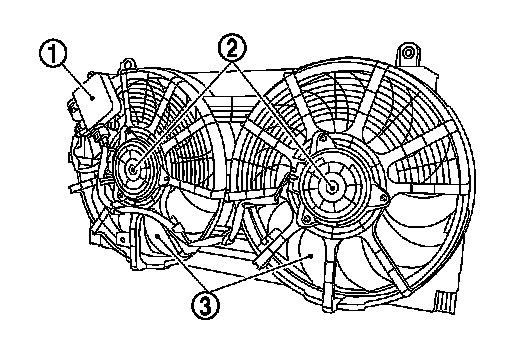

Cooling fan (electric fan)






- This cooling fan has a resin shroud.





- The installation of shroud to the cooling fan control module allows the controlling of cooling fan motor revolutions.
- The cooling fan control module is controlled by a control signal transmitted from VCM (Vehicle Control Module), according to a coolant temperature, vehicle speed, and request from air conditioner.
