COWL TOP

Removal and Installation


COWL TOP COVER

Removal
1.Fully open hood assembly.
2.Remove front wiper arms (LH and RH). Refer to "Removal and Installation" .
3.Remove front fender cover. Refer to "Exploded View" .
4.Disconnect washer tube joint on cowl top cover right side.

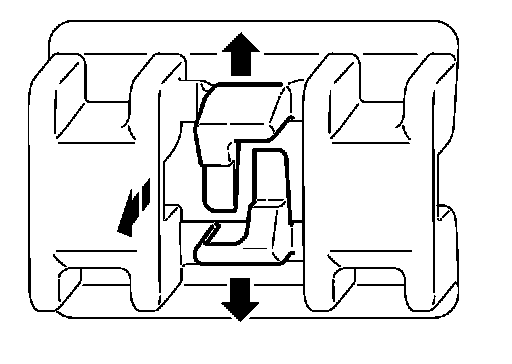

5.Expand center portion of clip that is fixing clip of cowl top cover and cowl top extension in the upper and lower direction indicated by arrows as shown in the figure, and then pull out clip toward vehicle front.





6.Pull forward to release cowl top cover from windshield glass.

CAUTION:
When performing the procedure after removing cowl top cover, cover the lower end of windshield glass with urethane etc to prevent damage to windshield.
7.Remove cowl top cover.
8.Remove the following parts after removing cowl top cover.
- EPT sealer
- Cowl top cover seal
- Washer tube
- Washer nozzles. Refer to "Removal and Installation" .
Installation
Installation is in the reverse order of removal.

CAUTION:
Always replace cowl top cover EPT sealer on rear of vehicle with a new one when installing old cowl top cover.

COWL TOP EXTENTION

Removal
1.Remove cowl top cover. Refer to "Removal and Installation" .
2.Remove front wiper drive assembly. Refer to "Removal and Installation" .
3.Remove cowl top extension mounting bolts, and then cowl top extension.
Installation
Installation is in the reverse order of removal.

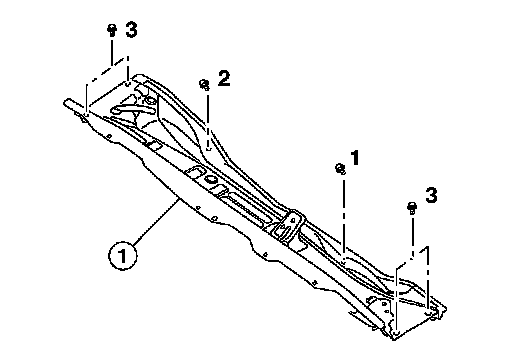

When installing the cowl top extension, tighten the bolts in the order shown.
