Windshield Washer Spray Nozzle: Testing and Inspection

FRONT WIPER AND WASHER SYSTEM

Inspection for Washer Nozzle

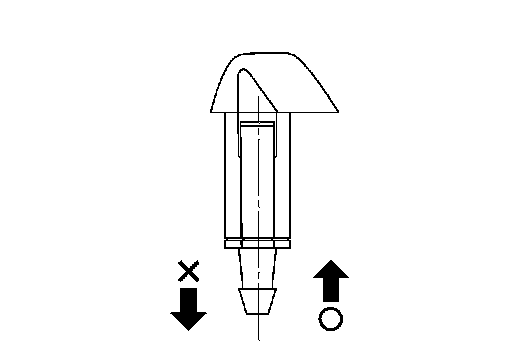

CHECK VALVE INSPECTION






Blow air in the injection direction, and make sure that air flows only one way. Make sure that the reverse direction is not possible.
