Rear Wiper Stop Position Is Incorrect

REAR WIPER AND WASHER SYSTEM

Rear Wiper Stop Position Is Incorrect


1. CHECK COMBINATION SWITCH (WIPER SWITCH) INPUT SIGNAL

Select "BCM" on CONSULT. With "WIPER" data monitor, make sure "RR WIPER STOP" turns ON-OFF
according to wiper operation.
When combination switch (wiper switch) is in OFF position : RR WIPER STOP OFF

OK or NG
OK- Replace BCM. Service and Repair .
NG- GO TO 2.

2. CHECK REAR WIPER MOTOR CIRCUIT






1.Turn ignition switch OFF.
2.Disconnect BCM and rear wiper motor.

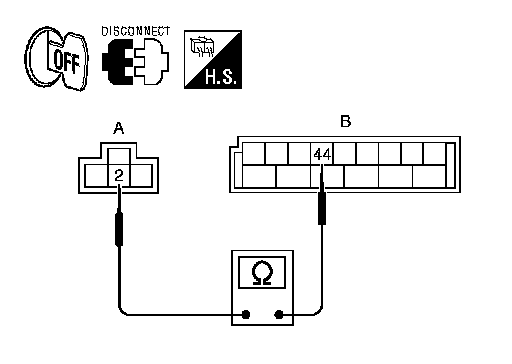

3.Check continuity between rear wiper motor connector (A) D404
terminal 2 and BCM connector (B) M19 terminal 44.
44 - 2: Continuity should exist.
OK or NG
OK- GO TO 3.
NG- Repair or replace harness.

3. CHECK REAR WIPER MOTOR SHORT CIRCUIT

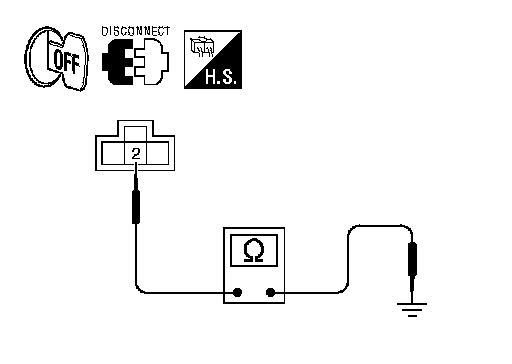

Check continuity between rear wiper motor connector D404 terminal
2 and ground.
2 - Ground: Continuity should not exist.
OK or NG
OK- GO TO 4.
NG- Repair or replace harness.

4. CHECK GROUND CIRCUIT

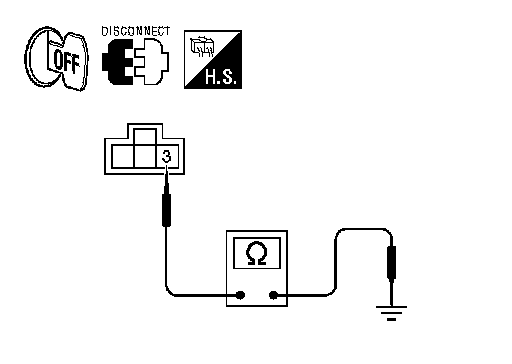

Check continuity between rear wiper motor connector D404 terminal
3 and ground.
3 - Ground: Continuity should exist.
OK or NG
OK- GO TO 5.
NG- Repair or replace harness.

5. CHECK AUTO STOP SIGNAL






1.Connect BCM.
2.Turn ignition switch ON.

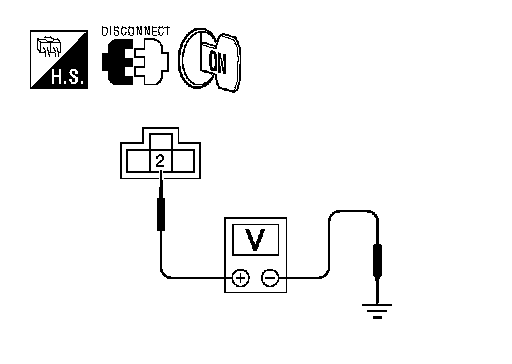

3.Check voltage between rear wiper motor connector D404 terminal 2 and ground.
2 - Ground: Battery voltage should exist.
OK or NG
OK- Replace BCM. Service and Repair .
NG- Replace rear wiper motor. Rear Wiper Arm .
