Scan Tool Testing and Procedures
POWER WINDOW SYSTEM
CONSULT Function (BCM)

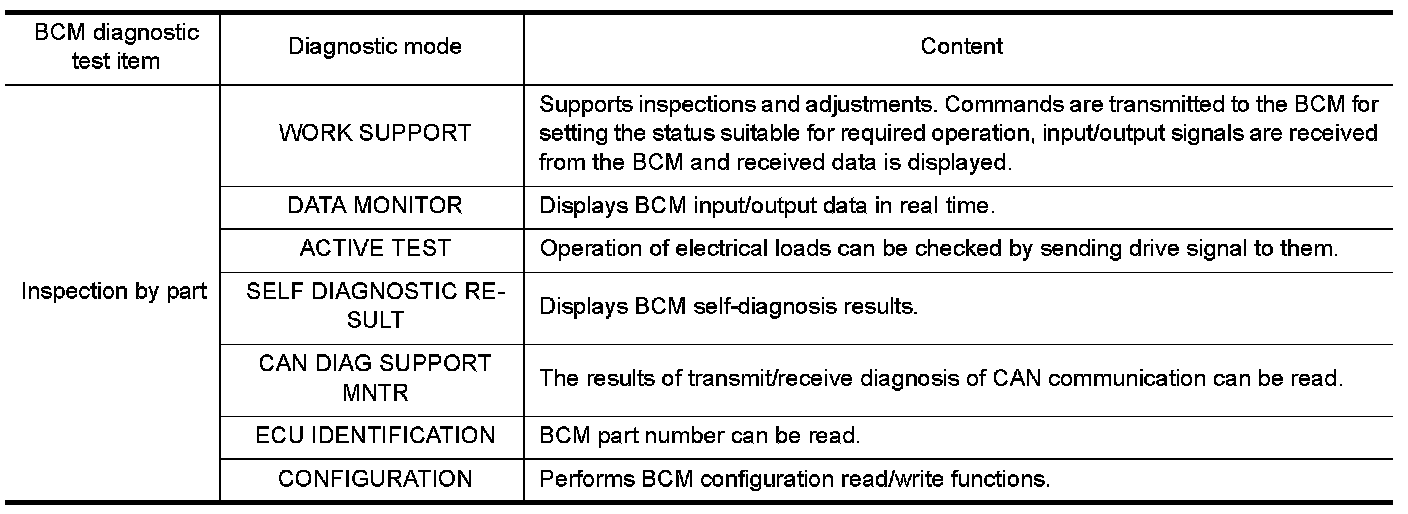

CONSULT can display each diagnostic item using the diagnostic test modes shown following.

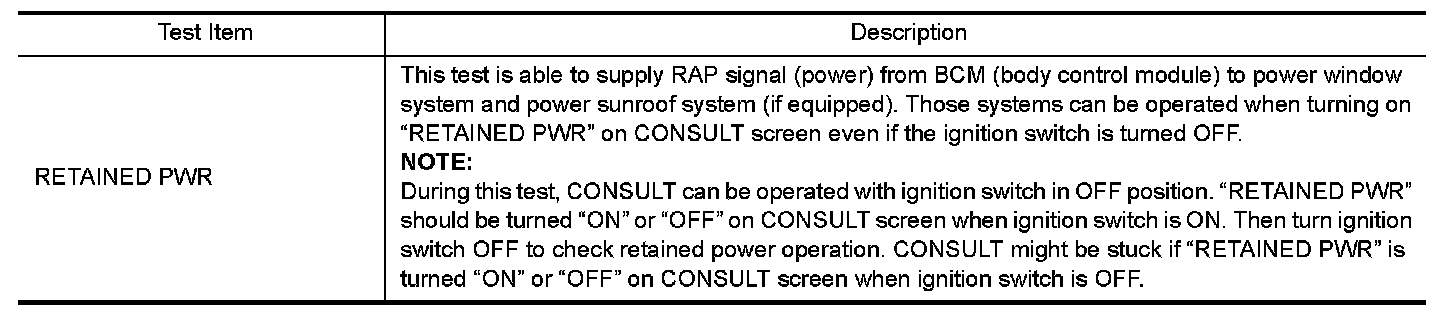

ACTIVE TEST

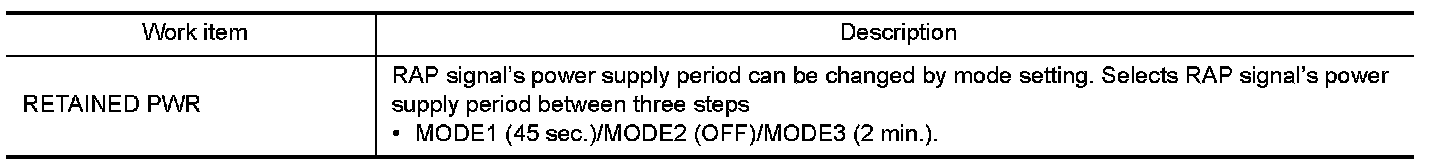

WORK SUPPORT
DATA MONITOR
POWER WINDOW SYSTEM
CONSULT Function (BCM)
CONSULT can display each diagnostic item using the diagnostic test modes shown following.
ACTIVE TEST
WORK SUPPORT
DATA MONITOR
