Terminal and Reference Value for Main Power Window and Door Lock/Unlock Switch




POWER WINDOW SYSTEM

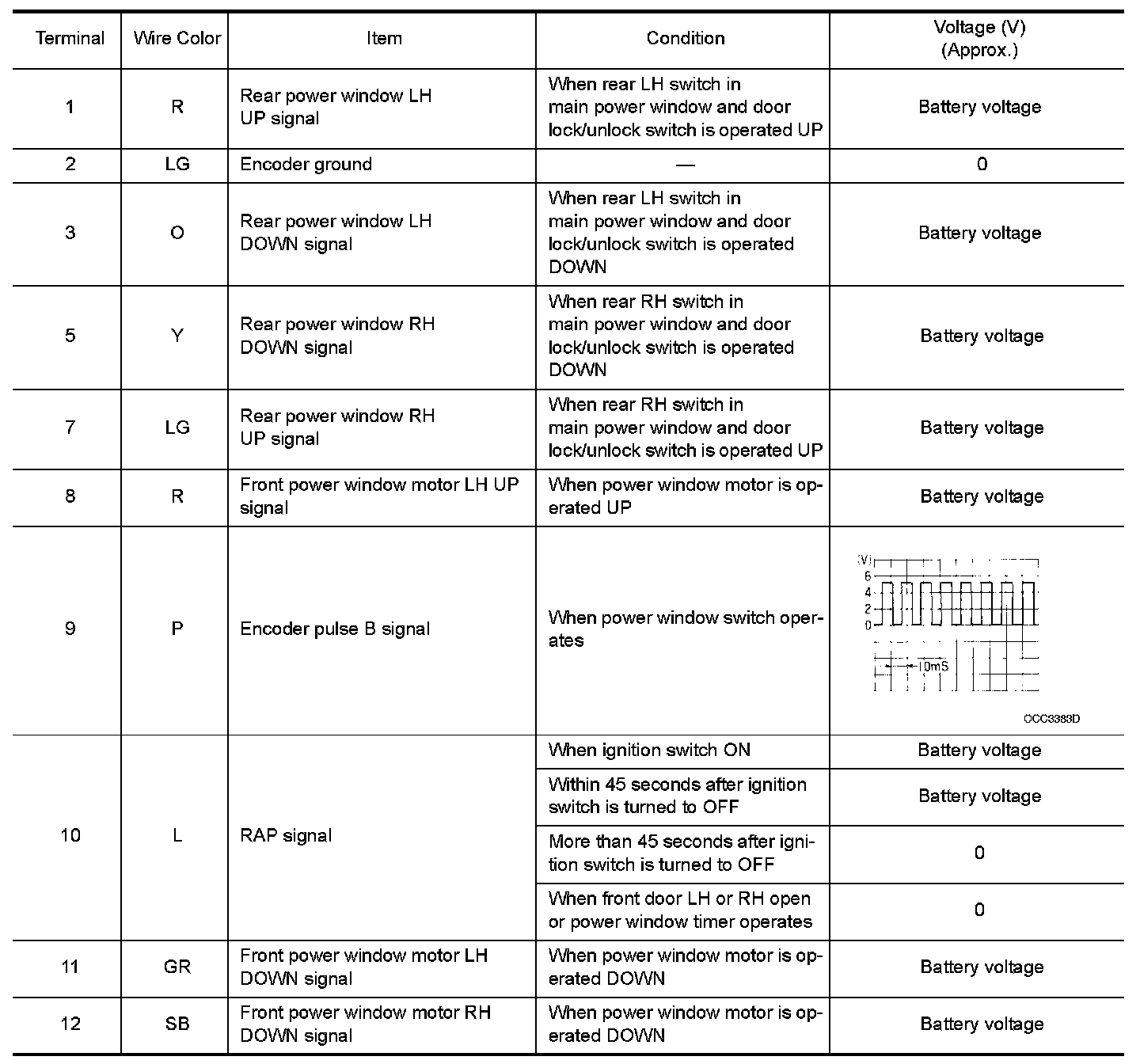

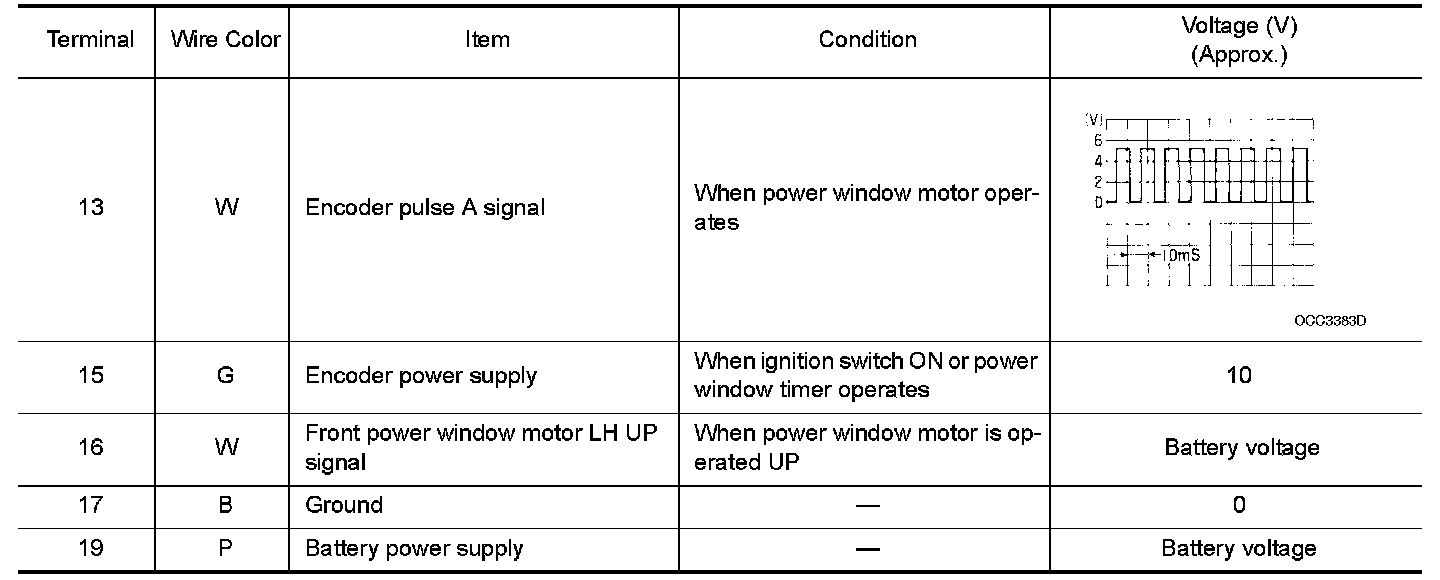

Terminal and Reference Value for Main Power Window and Door Lock/Unlock Switch
