Rear Power Window RH Circuit Inspection (Rear Power Window Switch RH Operation)

POWER WINDOW SYSTEM

Rear Power Window RH Circuit Inspection (Rear Power Window Switch RH Operation)


1. CHECK POWER SUPPLY






1.Turn ignition switch ON.

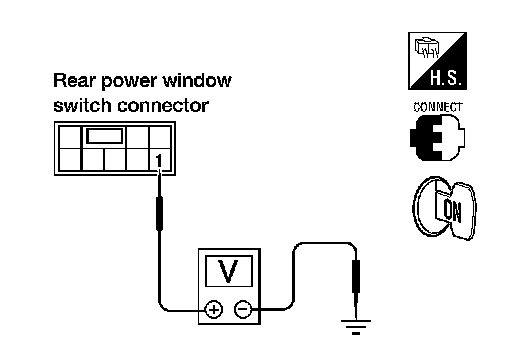

2.Check voltage between rear power window switch RH connector
D303 terminal 1 and ground.
1 - Ground: Battery voltage
OK or NG
OK- Replace rear power window switch RH. Service and Repair .
NG- Repair or replace harness.
