Rear Power Window LH Circuit Inspection (Rear Power Window Switch LH Operation)

POWER WINDOW SYSTEM

Rear Power Window LH Circuit Inspection (Rear Power Window Switch LH Operation)


1. CHECK POWER SUPPLY






1.Turn ignition switch ON.

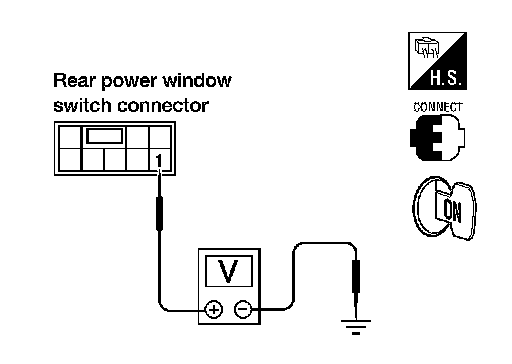

2.Check voltage between rear power window switch LH connector
D203 terminal 1 and ground.
1 - Ground: Battery voltage
OK or NG
OK- Replace rear power window switch LH. Service and Repair .
NG- Repair or replace harness.
